Virtual Controllers

Four classes, seven slot categories, one contract: how PadForge's virtual controllers submit state, decode feedback, and talk to their drivers.

Developer reference for the four IVirtualController implementations in v4: HIDMaestro-backed (one class for the Xbox, PlayStation, Nintendo, and Extended categories), KeyboardMouse, MIDI, and VR. Covers state submission, axis/button mapping formulas, rumble/FFB, driver interaction, and type-specific quirks. The lifecycle layer that wraps these classes (off-polling-thread Connect/Disconnect, inactivity destroy, bubble-down cascade) lives on HIDMaestro Deep Dive.

Contents

Architecture Overview

graph TB
    subgraph Engine["PadForge.Engine (interface + types)"]
        IVC["IVirtualController<br/><i>interface</i>"]
        VCT["VirtualControllerType<br/>Xbox / PlayStation / Nintendo /<br/>Extended / KeyboardMouse / Midi / Vr"]
        GP["Gamepad struct<br/>(XInput layout)"]
        ERS["RawHidState<br/>(dynamic axes/buttons/POVs)"]
        KRS["KbmRawState<br/>(256 VK + mouse)"]
        MRS["MidiRawState<br/>(CC + notes)"]
        VRS["VrRawState<br/>(left + right hand pair)"]
    end

    subgraph App["PadForge.App (implementations)"]
        HMVC["HMaestroVirtualController<br/>One class for Xbox / PlayStation / Nintendo / Extended<br/>(HMContext + HMProfile + Type at ctor)"]
        VRVC["HMaestroVRController<br/>SteamVR hand pair"]
        KBM["KeyboardMouseVirtualController<br/>Win32 SendInput"]
        MIDI["MidiVirtualController<br/>Windows MIDI Services"]
    end

    subgraph Drivers["OS / Driver Layer"]
        HM["HIDMaestro<br/>user-mode driver<br/>UMDF2 + USB/IP backends"]
        HMVRD["HIDMaestro<br/>native OpenVR driver"]
        WIN["Windows<br/>Input Queue"]
        WMS["Windows MIDI<br/>Services"]
    end

    IVC --> HMVC & VRVC & KBM & MIDI
    VCT --> HMVC

    GP -->|"SubmitGamepadState()"| HMVC
    ERS -->|"SubmitRawHidState()<br/>+ MotionSnapshot (IMU channel)"| HMVC
    KRS -->|"SubmitKbmState()"| KBM
    MRS -->|"SubmitMidiRawState()"| MIDI
    VRS -->|"SubmitVrState()"| VRVC

    HMVC -->|"HMController.SubmitState()<br/>or SubmitRawReport()"| HM
    VRVC -->|"HMVRController.SubmitState()"| HMVRD
    KBM -->|"SendInput()<br/><i>per event</i>"| WIN
    MIDI -->|"SendSingleMessageWords()<br/><i>per CC/note</i>"| WMS

    HM -.->|"OutputDecoded (Sony + Switch Pro motors / DS5 passthrough)<br/>OutputReceived (XInput / Xbox HID / PID FFB)"| HMVC

    style IVC fill:#fff3e0
    style VCT fill:#fff3e0
    style HMVC fill:#f3e5f5
    style HM fill:#e8f5e9
    style WIN fill:#e1f5fe
    style WMS fill:#f3e5f5

Quick Comparison

Property Xbox / PlayStation / Nintendo / Extended VR KBM MIDI
Class HMaestroVirtualController HMaestroVRController KeyboardMouseVirtualController MidiVirtualController
Backend HIDMaestro (UMDF2 user-mode driver, or its USB/IP backend for the composite Sony and Valve profiles) HIDMaestro's native OpenVR driver Win32 SendInput (no driver) Windows MIDI Services, else the legacy WinMM API
Required driver HIDMaestro HIDMaestro OpenVR driver plus SteamVR None None. Windows MIDI Services gives each slot its own port, and the legacy API sends to a picked one
Submit methods SubmitGamepadState(Gamepad) for Xbox slots. A PlayStation overload adds touchpad / IMU / battery. SubmitRawHidState(RawHidState, sticks, triggers) (plus a MotionSnapshot overload) for Nintendo and Extended slots. SubmitRawReport(ReadOnlySpan<byte>) for the Sony USB Report 0x01 layout and for the Valve personas' native frames. SubmitPackedExtendedReport(ReadOnlySpan<byte>) for an Extended layout past 32 buttons or one hat SubmitVrState(in VrRawState) SubmitKbmState(KbmRawState) SubmitMidiRawState(MidiRawState)
Axis format at the SDK boundary HMGamepadState.Axes = Dictionary<HMAxis, float> normalized to [0, 1] (0.5 = stick center, 0 = released trigger). Y flipped to HID convention (up = 0.0) HMVRHandState floats: sticks -1..1 (Y flipped to OpenVR's Y-up), trigger and grip 0..1 short delta (mouse) byte CC (0..127)
Button format HMButton [Flags] enum. The raw path passes all 32 bits HMVRButton flags, 8 bits per hand, identical by construction to VrHandRaw.Buttons Per-VK SendInput MIDI Note On/Off
Rumble/FFB HMController.OutputDecoded (Sony and Switch Pro motors + DS5 effect passthrough) and HMController.OutputReceived (XInput / Xbox HID rumble, full PID FFB for Extended) HMVRController.HapticReceived: OpenVR pulses fan into the slot's Vibration (left hand to left motor, right to right) with a per-hand expiry deadline No No
Change detection Idle dedup with a 16 ms keepalive on the plain gamepad path, the raw HID path, and the packed Extended path. The PlayStation overload and SubmitRawReport submit every tick. An identical frame inside the window is skipped, then re-published so the driver's stale watchdogs never trip. Changes always submit the same tick. Motion frames never dedup. PADFORGE_NO_RAWDEDUP=1 disables the raw-path dedup at launch (regression bisect switch). None. Every tick submits XOR per 64-bit word in the keymask Per CC/note value
Max instances 16 (across the four HM-backed categories combined, sharing the 16-slot total with KBM, VR, and MIDI) 1 (SettingsManager.MaxVrSlots). One slot already drives both hands, and SteamVR tracks one pair, so a second would fight the first over the same two devices 16 16 (MaxMidiSlots = MaxPads)
Lifecycle HM Connect()/Disconnect() are off-polling-thread (wrapped in Task.Run by Step5.VirtualDevices). See Lifecycle: Step 5 invariants Created on the same Step 5 Task.Run chain, because the first Connect registers the SteamVR driver. All calls are in-process over a named pipe inside HIDMaestro.Core Created on the same Step 5 Task.Run chain. Connect() itself creates no device Created on the same Step 5 Task.Run chain, and destroyed asynchronously every time. Connect() and Disconnect() carry their own timeouts

Source files: - PadForge.Engine/Common/VirtualControllerTypes.cs. IVirtualController interface + VirtualControllerType enum ([XmlEnum("Sony")] preserves the on-disk name "Sony" for v2 PadForge.xml back-compat) + VirtualControllerGroups.InOrder (the fixed seven-group visual order). - PadForge.Engine/Common/VrRawState.cs. VrHandRaw / VrRawState plus the VrLayout mapping-key vocabulary. - PadForge.App/Common/Input/HMaestroVirtualController.cs. Single class for all four HM-backed categories. - PadForge.App/Common/Input/HMaestroVRController.cs. The SteamVR hand pair. - PadForge.App/Common/Input/KeyboardMouseVirtualController.cs. Win32 SendInput, KbmRawState combine logic. - PadForge.App/Common/Input/MidiVirtualController.cs. MIDI virtual controller lifecycle, over MidiBackendInBox (the in-box Windows.Devices.Midi2) or MidiBackendAppSdk (the App SDK runtime) as MidiApiSelection picks, else MidiBackendLegacy (the legacy WinMM API, MidiBackendLegacy.cs).

The lifecycle code that creates / destroys / reorders these instances per slot lives in PadForge.App/Common/Input/InputManager.Step5.VirtualDevices.cs and is documented under HIDMaestro Deep Dive#Lifecycle Step 5 invariants (HM thread pool, inactivity timeout, bubble-down cascade for mid-stack destroys, etc.).

IVirtualController Interface

namespace PadForge.Engine
{
    public enum VirtualControllerType
    {
        [XmlEnum("Microsoft")] Xbox = 0,         // on-disk alias preserves v2 PadForge.xml
        [XmlEnum("Sony")]      PlayStation = 1,  // on-disk alias preserves v2 PadForge.xml
        Extended = 2,
        Midi = 3,
        KeyboardMouse = 4,
        Nintendo = 5,  // appended after KeyboardMouse. Numeric values persist, never reorder
        Vr = 6         // appended after Nintendo, same rule
    }

    public interface IVirtualController : IDisposable
    {
        VirtualControllerType Type { get; }
        bool IsConnected { get; }

        /// The pad slot index this VC currently occupies. Updated by SwapSlotData
        /// so feedback callbacks write to the correct VibrationStates element
        /// after a slot reorder.
        int FeedbackPadIndex { get; set; }

        void Connect();
        void Disconnect();
        void SubmitGamepadState(Gamepad gp);
        void RegisterFeedbackCallback(int padIndex, Vibration[] vibrationStates);
    }
}

Defined in: PadForge.Engine/Common/VirtualControllerTypes.cs

Nintendo = 5 is a console-family category like Xbox and PlayStation (own bucket, icon, fixed catalog profile) that rides the raw-HID data path. It has no Customize surface: the slot always deploys the catalog profile as-is.

Vr = 6 is the SteamVR hand pair (issue #49). One slot drives both hands through one HMaestroVRController. It has no per-slot config: the driver ships one identity and haptics fan out like game rumble.

The same file defines VirtualControllerGroups.InOrder (VirtualControllerTypes.cs:62-74), the seven user-facing groups in fixed visual order: Xbox, PlayStation, Nintendo, Extended, KeyboardMouse, Midi, Vr. The order matches the sidebar / dashboard rendering and is not user-reorderable. Each group is independent: operations on one must not affect any other.

Gamepad Struct (Input Contract)

XInput-layout struct used as the universal input format for the Xbox and PlayStation categories (and for Extended slots' gamepad-shaped intermediate in Steps 3-4). HMaestroVirtualController.SubmitGamepadState translates it to HMGamepadState. The KBM and MIDI implementations leave SubmitGamepadState as a no-op and read KbmRawState / MidiRawState directly through their own submit methods.

Field Type Range Description
ThumbLX short -32768..32767 Left stick X (positive = right)
ThumbLY short -32768..32767 Left stick Y (positive = up)
ThumbRX short -32768..32767 Right stick X (positive = right)
ThumbRY short -32768..32767 Right stick Y (positive = up)
LeftTrigger ushort 0..65535 Left trigger (unsigned)
RightTrigger ushort 0..65535 Right trigger (unsigned)
Buttons ushort Bitmask 16 bit-constants 0x0001..0x8000: DPad (Up/Down/Left/Right), Start, Back, LS, RS, LB, RB, Guide, Touchpad (0x0800, PlayStation slots, used by macros), A, B, X, Y
Share bool true/false Xbox Series Share button. Separate field because all 16 Buttons bits are taken. HM exposes it as HMButton.Share on Xbox Series profiles
MicMute bool true/false DualSense mic mute (wire bit 0x04 of the third buttons byte). SDL calls this misc1 on PS5 pads, and HM carries it as HMButton.Misc1
LeftPaddle, RightPaddle bool true/false DualSense Edge back paddles (wire bits 0x40 left, 0x80 right)
LeftFunction, RightFunction bool true/false DualSense Edge front Fn buttons (wire bits 0x10 left, 0x20 right), which SDL exposes as LEFT_PADDLE2 / RIGHT_PADDLE2

All six bool extras are set unconditionally. Since HM v1.5.1 the buttonMaps carry an explicit -1 for bits a profile does not declare, which is what ended the identity fallthrough that had Share pressing PS on every Sony pad.

FeedbackPadIndex

Tracks which slot this VC occupies for correct VibrationStates[] writes. The runtime writers are RegisterFeedbackCallback (sets the initial index), RetargetToPad (HMaestroVirtualController.cs:654, invoked by InputManager.RerouteVirtualControllersForReorder at InputManager.Step5.VirtualDevices.cs:3826 on intra-group reorder, which also rebuilds the DS5 passthrough and user-effects dispatchers against the new pad), and UnregisterFeedback (HMaestroVirtualController.cs:1409, parks the index at -1 on destroy so late driver callbacks no-op). The feedback handler reads the property on every callback (not a captured copy), so it always resolves the current slot index after a reorder. The interface docstring still names a SwapSlotData updater. No such method exists in the codebase.

Type-Specific Submit Methods

All implementations have SubmitGamepadState(Gamepad gp) for interface compliance, but the non-gamepad outputs use alternative submit methods and leave it as a no-op:

  • Xbox: SubmitGamepadState(Gamepad gp) (HMaestroVirtualController.cs:790). Standard XInput-shaped path.
  • PlayStation: the extended overload SubmitGamepadState(gp, in TouchpadState, in MotionSnapshot, byte batteryPercent, bool batteryCharging) (HMaestroVirtualController.cs:914) carries the Sony sensor / battery payload alongside the gamepad state.
  • PlayStation (DS4/DS5 USB report): SubmitRawReport(ReadOnlySpan<byte> report) (HMaestroVirtualController.cs:730). Sony Report 0x01 carrying touchpad / gyro / accel / battery.
  • Nintendo and Extended (raw HID surface): SubmitRawHidState(RawHidState raw, int sticks, int triggers) (HMaestroVirtualController.cs:1074) plus an overload taking in MotionSnapshot (:1138) that feeds the HM v1.3.18 IMU channel. Up to 8 axes, 32-bit button mask, 1 hat. This path carries profile-specific button bits beyond the named set and arbitrary per-profile axis layouts that the fixed Gamepad struct can't express.
  • Extended past 32 buttons or one hat: SubmitPackedExtendedReport(ReadOnlySpan<byte> report) (HMaestroVirtualController.cs:1380). When ExtendedReportPacker.NeedsRawReport(layout) is true, Step 5 packs the frame against the descriptor the slot's own build emitted (up to 128 buttons and 4 hats) and submits it raw, with the same 16 ms idle dedup.
  • VR: SubmitVrState(in VrRawState raw) (HMaestroVRController.cs:191). The left + right hand pair for one slot.
  • KeyboardMouse: SubmitKbmState(KbmRawState raw). Keys, mouse, scroll.
  • MIDI: SubmitMidiRawState(MidiRawState state). CC values and note on/off.

HMaestroVirtualController

Namespace: PadForge.Common.Input Visibility: internal sealed File: PadForge.App/Common/Input/HMaestroVirtualController.cs Backs: VirtualControllerType.Xbox, .PlayStation, .Nintendo, .Extended Max instances: 16 (MaxPads, InputManager.cs:102). HM-backed slots share that 16-slot pool with KBM, VR, and MIDI. Xbox-category slots are visible to XInput games as user index 1 through 4 (Microsoft API limit). SDL / DirectInput games see all of them.

One IVirtualController implementation handles every preset and every custom HID descriptor through a single SDK surface: HMContext + HMProfile + HMController. The user-facing category (Xbox / PlayStation / Nintendo / Extended) is supplied at construction so per-type counting in InputManager and InputService keeps working. The actual driver-side device shape is determined by the supplied HMProfile.

For lifecycle invariants that wrap this class (off-polling-thread Connect/Disconnect, inactivity-destroy timeout, bubble-down cascade on mid-stack destroy), see HIDMaestro Deep Dive#Lifecycle Step 5 invariants. This page covers only the controller class itself.

Nintendo category (issue #246)

New in 4.1.0. A virtual Nintendo Switch Pro Controller as a first-class slot category beside Xbox and PlayStation, shown in the UI as Nintendo and backed by HIDMaestro v1.3.18's functional Switch Pro (HIDMaestro#33: USB init replies, subcommand request-reply state machine, 60 Hz report-0x30 streaming, HD-rumble decode).

Nintendo slot on the Pad page: SLOT 3 config bar with the Nintendo type chip and the Preset picker on Nintendo Switch Pro Controller, tabs for Preview, Mappings, Macros, Menus, and Bass Shakers, the 2D Switch Pro preview below with the HOME button highlighted, and Left Motor / Right Motor test buttons

Aspect Behavior
Preset Four catalog profiles: switch-pro (VID 0x057E, PID 0x2009), switch-pro-usb (the same pad on its USB descriptor, HIDMaestro 2.0.0, which sends its 0x30 report every 15 ms once a host starts it with the USB handshake), switch2-pro-controller (VID 0x057E, PID 0x2069, a UMDF2 HID gamepad) and switch2-pro-controller-composite (the same pad as a two-interface USB/IP persona, HIDMaestro 1.11.0). HMaestroProfileCatalog.NintendoProfiles filters on IsNintendoProfile (HMaestroProfileCatalog.cs:622), an explicit id list. Joy-Cons, NSO retro pads, and the GameCube adapter stay in the Extended category. DefaultNintendoProfileId (InputManager.Step5.VirtualDevices.cs:2790) seeds new slots with switch-pro.
Creation CreateVirtualController routes Nintendo through CreateHMaestroController (InputManager.Step5.VirtualDevices.cs:2876), same as the other HM categories. No Customize surface: the profile-override branch in CreateHMaestroController gates on type == Extended (:3238), so a Nintendo slot always deploys the catalog profile as-is. Reorder rerouting includes the Nintendo group (:3671-3674).
Data path The raw HID surface. SlotRawHidSurface is true for both Extended and Nintendo slots (InputService.cs:6516-6518), so Step 3/4 produce RawHidState and Step 5 submits via SubmitRawHidState with the slot's MotionSnapshot riding beside it (InputManager.Step5.VirtualDevices.cs:2366-2374). On a Switch 2 Pro profile the frame's rows go through Switch2ProStateMap on the way (see Switch 2 Pro state).
Gyro passthrough The MotionSnapshot overload fills the HM v1.3.18 IMU channel: AccelGX/GY/GZ (g) and GyroDpsX/Y/Z (deg/s) land verbatim in the SDL sensor frame (HMaestroVirtualController.cs:1321-1326). The driver-side packer owns the wire frame and scale, so the vector round-trips bit-consistent to SDL on the client. Zeroes when the slot maps no motion source and no Motion Pitch, Yaw or Roll row. switch-pro and switch2-pro-controller-composite only. HIDMaestro keys its Switch Pro protocol (the report 0x30 body with the IMU, and the rumble decode below) on PID 0x2009 (SwitchProPacker.IsSwitchPro), and its Switch 2 Pro protocol on a USB/IP controller with PID 0x2069 (Switch2ProPacker.IsSwitch2Pro), whose report 0x05 carries the six motion counts. The plain switch2-pro-controller profile's report 0x09 carries no motion field.
Rumble On switch-pro, HIDMaestro's SDK (HMController, SwitchProPacker.DecodeRumbleAmplitude) decodes the game's 0x01/0x10 HD-rumble writes itself and emits leftMotor / rightMotor on OutputDecoded only for genuine rumble frames. On switch2-pro-controller-composite the SDK decodes output report 0x02 (Switch2ProPacker.DecodeRumble) into the same two fields, and a stop arrives as 0, 0. The plain switch2-pro-controller gets no rumble decode. MotorWriteAllowed keeps non-Sony vendors on unconditional trust (the validity-flag semantics are Sony's, :2075), and a dedicated NintendoVid (0x057E) branch feeds the inbound game-feedback pack for Bass Shakers (:1624-1638).
Button lettering Nintendo slots keep the raw Numbered value space and re-letter labels per raw index through the active profile's wire table (NintendoPreviewMap.ButtonTable, read by MacroItem.cs NintendoLetteredLabel). The switch-pro table is B A Y X, L R, ZL ZR, Minus Plus, stick clicks, Home, Capture (NintendoExtendedLabel). Its descriptor's gamepad report (0x3F) declares 16 buttons, but only the 14 role-mapped indices reach the wire (NintendoLetteredButtonCount). The Switch 2 Pro table, which both of its profiles share, has 21: the D-pad rides four discrete buttons, and GR, GL and C follow Capture. ZL/ZR digital clicks ride TriggerClickButtonMask, derived from the profile layout's trigger-click roles (InputService.TriggerClickButtonMaskFrom, InputService.cs:6438).
Preview Both views, like Xbox and PlayStation. 3D is the Switch 2 Pro mesh, shared with the switch2-pro profiles (HMaestroProfileCatalog.ResolveAssetFolders maps switch-pro to the Switch2Pro model and its own SWITCHPRO 2D set). The S2-only parts render inert on an original Pro Controller.
Readers switch2-pro-controller-composite sends nothing until a host starts it over its bulk interface, as the real pad does. Steam and SDL built with libusb do. DirectInput, RawInput, Windows.Gaming.Input and browsers read nothing from it, so switch2-pro-controller stays the profile for them and switch-pro stays the default.
HOME LED Physical Switch pads assigned to the slot take Guide LED brightness through the Lighting tab's "Guide Button LED" card ("Device Default" / "Fixed Brightness" / "Battery Level"). The writer is per device, SDL SDL_SetJoystickLED, which the Switch HIDAPI driver converts to a subcommand 0x38 Set HOME Light packet with 15 nonzero intensity steps (SwitchHomeLedSetter.cs). Works on any connection. This lane is device-scoped, not VC-scoped: it drives the physical pad's LED whatever the slot type.

Acceptance was hardware-verified: SDL3's HIDAPI_DriverSwitch opens the virtual pad, completes init, reads calibrated sticks and buttons, reports gyro + accel through SDL_GetGamepadSensorData, and Steam Input shows a Pro Controller with Nintendo glyphs.

Valve personas (issues #337 / #338)

New in 4.4.0. Five HIDMaestro profiles in the Extended category present as Valve hardware, and Steam and any SDL game read the real device's USB identity. Four of them submit that device's own input frame instead of the field-encoded raw surface. The plain Steam Deck Controller sends the field-encoded surface.

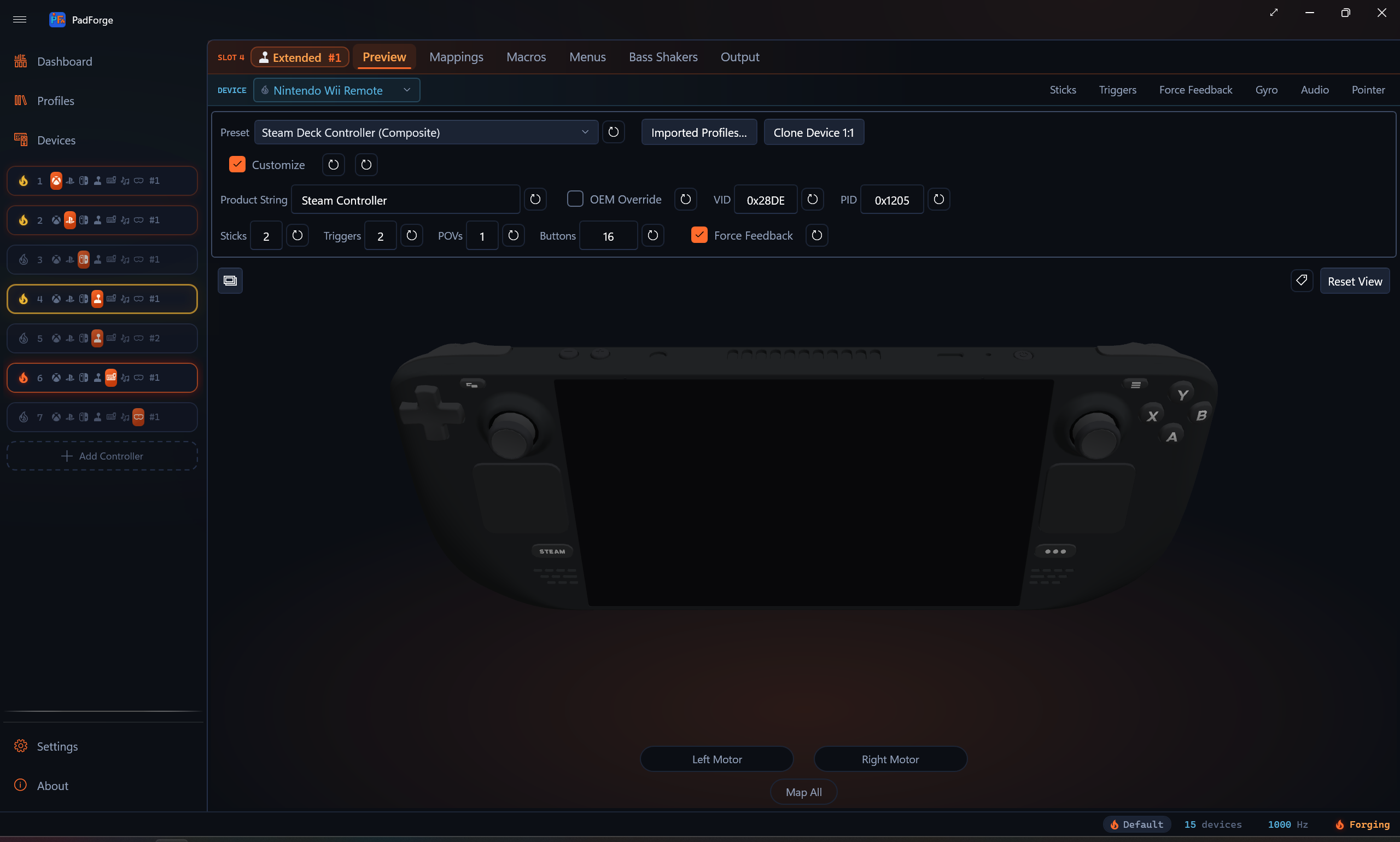

Extended slot on the Pad page with the Steam Deck Controller profile: the config bar with the Extended type chip and the Preset picker, and the Steam Deck body in the 3D preview below

Profile id Catalog name USB identity Presents as
steam-controller Steam Controller (Wired) 28DE:1102 One vendor-page HID interface, 64-byte reports
steam-controller-composite Steam Controller (Composite) 28DE:1102 The wired 2015 pad's whole USB configuration: lizard-mode mouse, boot keyboard, vendor controller on interface 2
steam-controller-2 Steam Controller (2026) 28DE:1302 One HID interface carrying everything by report id: mouse 0x40, keyboard 0x41, controller state 0x42
steam-deck Steam Deck Controller 28DE:1205 A plain HID gamepad descriptor, 6 axes / 21 buttons / 1 hat
steam-deck-composite Steam Deck Controller (Composite) 28DE:1205 The Deck's five-interface configuration, down to the CDC ACM pair

Ids, names and USB identities are HIDMaestro's, from the profile JSON embedded in HIDMaestro.Core.dll (HIDMaestro.Profiles.valve\*.json). steam-controller-composite, steam-controller-2 and steam-deck-composite run on HIDMaestro's USB/IP backend, because the identity Steam inspects is the whole configuration rather than the controller interface alone. No Valve id is in HMaestroProfileCatalog.WithheldProfileIds, and ValveProfileArtworkTests fails the build if one is put back into it. Since HIDMaestro 2.0.0 the set holds the GameCube adapter's Full persona alone.

Valve's CAD is CC BY-NC-SA 4.0, Copyright Valve Corporation. PadForge is not associated with or endorsed by Valve.

What a client sees. On a headless bench, stock SDL3 with SDL_JOYSTICK_HIDAPI_STEAM=1 claimed steam-controller-composite as "Steam Controller" with two touchpads, gyro and accelerometer, and a live Steam client opened it, reserved XInput slot 0, took the input stream and loaded the gordon configuration set. Nothing has run against real Valve hardware.

Native input frames

ValveReportPackers (PadForge.App/Common/Input/ValveReportPackers.cs) packs the slot's RawHidState, TouchpadState and MotionSnapshot into the device's own report. Step 5 asks ValveReportPackers.ForProfile(profileId), and when it gets a packer it submits the first valvePacker.Size bytes of _deckReportScratch through SubmitRawReport instead of SubmitRawHidState (InputManager.Step5.VirtualDevices.cs:2337-2348).

Profile Report Size Source
steam-deck-composite ValveInReport type 0x09, header 01 00 09 40 64 SDL controller_structs.h SteamDeckStatePacket_t plus SDL_hidapi_steamdeck.c
steam-controller, steam-controller-composite ValveInReport type 0x01, header 01 00 01 3C 64 SDL SDL_hidapi_steam.c masks 118-140, ValveControllerStatePacket_t
steam-controller-2 Report 0x42, TritonMTUFull_t 54 SDL controller_structs.h, cross-checked against sc2-research docs/HID_REPORT_FORMAT.md

Both 2015 profiles share one frame: the plain UMDF2 profile exposes the wired controller's 64-byte vendor report, and the composite persona's extended report is that same ValveInReport. Plain steam-deck has no packer and rides SubmitRawHidState like any other Extended profile.

Every slot in a frame resolves through NintendoPreviewMap.IndexOf(profileId, role), so the packers, the mapping grid, the labels and the preview bridge all read one table. Four frame details the structs do not give away:

  • Packet number. unPacketNum advances on every submit. SDL's own struct comment licenses a consumer to skip a frame whose number has not changed, so a constant freezes it.
  • Triggers. The engine stores a trigger bipolar, rest at short.MinValue. Every Valve wire carries it unsigned 0..32767, which SDL decodes back with * 2 - 32768, so the packers rescale with (raw + 32768) / 2. An earlier clamp to [0, 32767] got rest and full pull right and read the whole lower half of the travel as zero.
  • Deck View and Menu. STEAMDECK_LBUTTON_VIEW is bit 12 and _MENU is bit 14 (SDL_hidapi_steamdeck.c:61-63). The Deck packer had the two swapped and its own test pinned the swap. ValveWireTests.Packer_PutsEveryNamedSpecButtonOnItsBit, which reads HIDMaestro's ExtendedReport spec off the SDK, found it.
  • IMU. MotionSnapshot maps into the Valve sensor frame as accel (X, -Z, Y) and gyro (pitch, -roll, yaw) on the Deck and the 2026 pad, and gyro (pitch, roll, yaw) on the 2015 pad, whose SDL driver reads that word as +Y where the other two read -Y (SDL_hidapi_steam.c:1684-1686, SDL_hidapi_steamdeck.c:250-257, SDL_hidapi_steam_triton.c:279-286). The 2015 frame once carried roll negated. Both scale to +/-2 g and +/-2000 deg/s. The quaternion field stays zero, because the slot has no fused orientation. The 2026 frame's IMU timestamp at byte 30 is microseconds, read from Stopwatch as the frame is handed over (ValveReportPackers.MicrosNow), since SDL advances its sensor clock by the difference between two frames' words (SDL_hidapi_steam_triton.c:274-277). It once carried the frame counter, so SDL's sensor clock ran about a thousand times slow.
  • Trigger clicks. The Deck and the 2026 pad set their digital trigger bits at 90 percent of the pull, 29490 of 32767 on the wire, the default in Valve's firmware that HIDMaestro 2.0.2 carries as triggerThreshold (ValveReportPackers.TriggerClickPull). The 2015 pad sets them where its 8-bit trigger byte reads 255, its end of travel. Every packer once set them at any travel, so a light pull fired a Steam Input full-pull binding.
  • Pad pressure. The Deck (bytes 56 and 58) and the 2026 pad (bytes 22 and 28) carry 32767 while a pad is touched or clicked and 0 otherwise. SDL divides the word by 32768 (SDL_hidapi_steamdeck.c:272, 284, SDL_hidapi_steam_triton.c:258, 270), so a press reads as full pressure. The frames once wrote 0xFFFF on a click, which SDL read as 2.0, and 0 on a touch.

Report clock and unit serials (HIDMaestro 2.0.2). The three personas report on their own clock, as the hardware does: the Deck and the 2026 pad every 4 ms and the 2015 pad every 9 ms. PadForge still submits a frame every engine tick, and each report carries the latest one. A persona created with an identity key, as PadForge creates them, answers a unit serial of its own, so Steam files a PadForge Deck or 2026 controller under new settings once. To keep a layout made under the old serial, copy configset_FX1A00000001.vdf and preferences_FX1A00000001.vdf (FXA9960200001 for the 2026 controller) in Steam\steamapps\common\Steam Controller Configs\<account>\config to the new serial's names, which Steam's logs\controller.txt shows.

The capacitive sensors ride rows appended to the wire tables, so saved bindings keep their slots. The Deck frame packs Left and Right Stick Touch into ulButtonsH at 0x4000 and 0x8000, byte 13 bits 0x40 and 0x80 (SDL_hidapi_steamdeck.c), and the 2026 frame packs Right Stick, Left Stick, Right Grip and Left Grip Touch at button bits 20, 24, 28 and 29 (SDL_hidapi_steam_triton.c). HIDMaestro 1.12.0 names the same bits. The plain steam-deck profile has no packer, so there the two stick rows are buttons 19 and 20 of its HID gamepad report.

Descriptors that lead with a mouse

The 2026 pad carries its lizard-mode mouse (report 0x40) and keyboard (0x41) ahead of its controller state (0x42) on one interface. HMController.SubmitRawReport takes data bytes only and the driver prepends the descriptor's first report id, so a 54-byte 0x42 frame shifted one byte and came back out as a mouse report. The rolling sequence number landed on relative X at 250 Hz and the cursor tore sideways until the slot was deleted.

HIDMaestro v1.7.1 fixed it (HIDMaestro#58): a profile that declares an input report id and is always armed now emits verbatim. HMaestroVirtualController resolves that pairing once at construction into _extendedFrameCarriesItsOwnId and calls SubmitRawExtendedReport, rather than letting the driver infer it from frame length, where a one-byte change to either size would flip the branch silently (HMaestroVirtualController.cs:707-730).

HMaestroProfileCatalog.LeadsWithAPointingReport (:500) parses a descriptor and returns true when its first input report sits in a Generic Desktop Mouse or Keyboard collection. It is a tripwire. Nothing in the app refuses a profile on it, and PointingReportProfileGuardTests uses it to require that every pointing-led profile carrying a packer is on the verbatim path.

Mapping grid

Valve slots keep the raw surface, and their rows carry Valve's own control names instead of "Button N". Labels come from MacroButtonNames.ValveRoleLabel (MacroItem.cs:8260) over the family's wire table.

Axes interleave as [LX LY LT RX RY RT], which is what ComputeAxisLayout produces for two sticks and two analog triggers. The Nintendo families pack [LX LY RX RY], having no analog triggers at all.

Buttons get one index space per family, all of them in NintendoPreviewMap:

Family Wire order
SteamDeck (steam-deck, -composite) A B X Y, L1 R1, View Menu, L3 R3, Steam, Quick Access, R4 L4 R5 L5, Left Pad Click, Right Pad Click, Left Stick Touch, Right Stick Touch. D-pad is a hat
SteamController (steam-controller, -composite) A B X Y, L1 R1, Back Start, L3, Steam, Left Grip, Right Grip, Left Pad Click, Right Pad Click. D-pad is a hat, and it is the left trackpad's quadrant bits
SteamController2 (steam-controller-2) A B X Y, L1 R1, View Menu, L3 R3, Steam, Quick Access, R4 L4 R5 L5, Left Pad Click, Right Pad Click, then the D-pad as four discrete buttons, then Left Stick Touch, Right Stick Touch, Left Grip Touch, Right Grip Touch

Row strings live in Strings.resx: Btn_View, Btn_Menu, Btn_Steam, Btn_QuickAccess, Btn_LeftGrip, Btn_RightGrip, Btn_LeftPadClick, Btn_RightPadClick, plus Mapping_LeftPadX / Y / Touch and their right-pad twins. R4, L4, R5 and L5 are printed on the hardware, so they are literals and are not localized.

The 2015 pad has one physical stick and rides its right trackpad as the right stick, which is why StickCount is 2 on every family. Its right pad click is one wire bit doing two jobs: SDL reports it as SDL_GAMEPAD_BUTTON_RIGHT_STICK (SDL_hidapi_steam.c:1613) and as the right pad's click on the touchpad surface (:1663), both from STEAM_BUTTON_RIGHTPAD_CLICKED_MASK. The table names the slot once as RightTouchpadClick, and NintendoPreviewMap.Aliases lets RightThumbButton reach the same row.

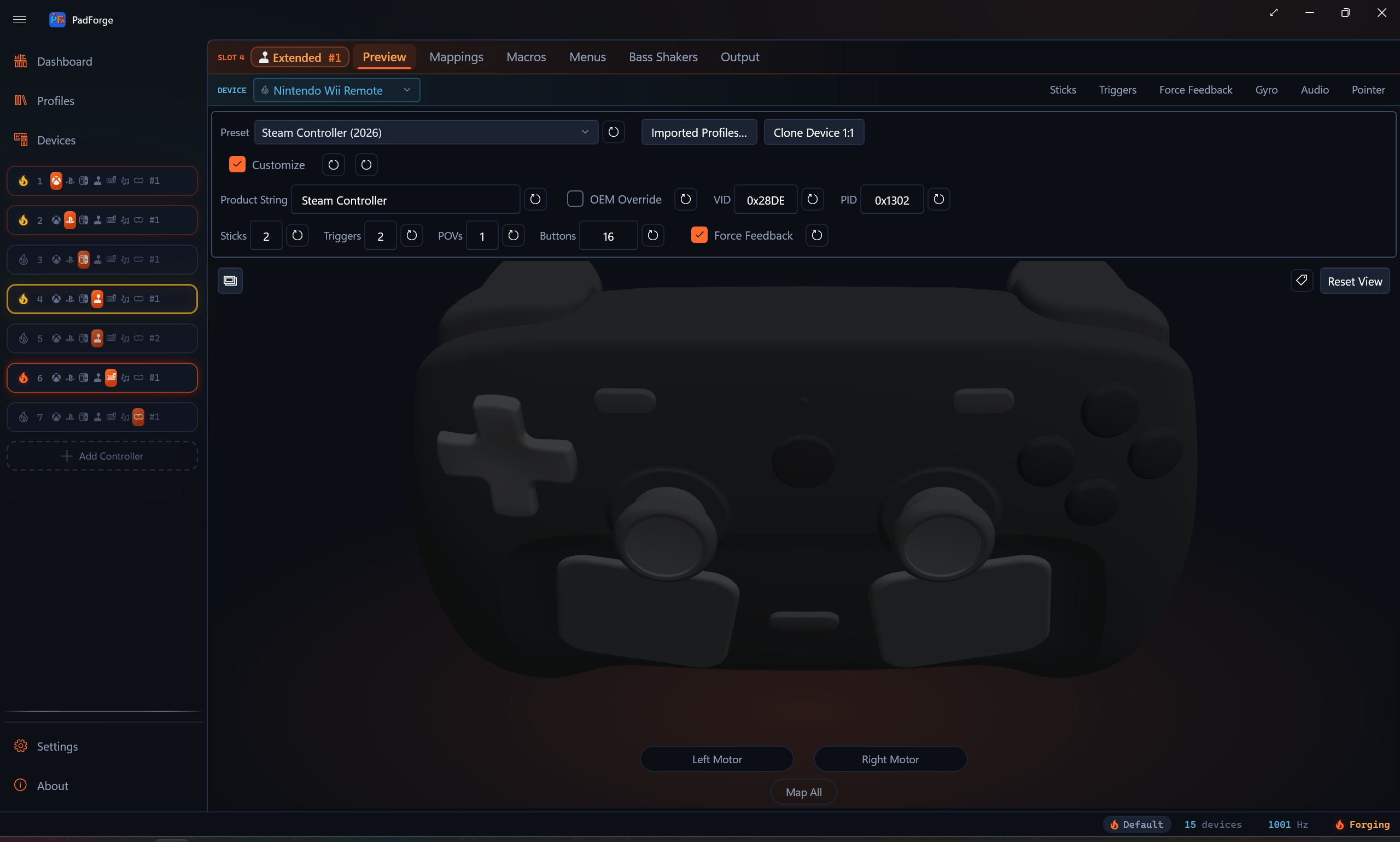

Extended slot on the Pad page with the Steam Controller (2026) profile: the config bar with the Extended type chip and the Preset picker, and the 2026 Steam Controller body in the 3D preview below

Both trackpads

InputManager.SlotCarriesTouchpad(slot) (InputManager.cs:292) is true for every PlayStation slot, and for an Extended slot on a raw surface whose profile is Valve. Step 3 computes the touch surface and Step 4 combines it only when it is true. Before that predicate existed both steps gated on PlayStation alone, so every Valve packer received a zeroed TouchpadState and no pad on a virtual Deck or Steam Controller could be touched.

Every Valve frame carries one finger per pad, so the slot's two-finger TouchpadState splits as finger 0 = left pad, finger 1 = right pad (ValveReportPackers.Pads). The grid lists Left / Right Pad X, Y and Touch on those two fingers. Pad clicks stay raw buttons, so a Valve grid has no TouchpadClick row. A click arriving with no per-pad source lands on whichever pad is touched, and on the left pad when neither is.

Automap binds the advertised gamepad buttons for the two clicks: "Button 16" is SDL's TOUCHPAD (touchpad:b17, the left click) and "Button 17" is MISC2 (misc2:b16, the right). The pressure descriptors are the fallback for a pad that advertises neither, which is the 2015 controller. A slot automapped by an earlier build keeps its old rows until the pad is reassigned.

Switching Extended profiles

The three Valve wires share almost no indices, so a profile change has to move the existing bindings and then fill what the new wire added. The PadViewModel.ProfileId setter does both (PadViewModel.cs:285):

  1. Translate. SettingsManager.TranslateNintendoRawMappings moves everything the slot names by a raw position, by role: the rows of every layer (MoveRawRows), each device's raw mappings with the deadzone and Bidirectional entries kept under the same target (MoveRawEntries), and the buttons the SOCD pairs name (MoveSocdPairs). A pair with a button the new wire lacks is dropped. Where two rows of one layer land on one target, the first with a source keeps it. Deck to 2015 without it left Steam on RawBtn10, which is the left grip over there, and a left pad click on RawBtn16, past the end of that 14-button wire. Both sides must be lettered: NintendoPreviewMap.ButtonTable falls back to the Switch Pro table for an id it does not know, so a numbered Extended profile is never translated.
  2. Automap the additions. DeviceService.FillEmptyAutoMappingsForSlot fills the targets the outgoing wire never had. The 2026 pad's D-pad is four discrete buttons at 18-21 and the Deck's wire ends at 17. The fill is additive, so a binding the user authored or deliberately cleared on this wire survives.

Both halves key on the wire stamp, never on the setter's previous value. Every restore, apply and import path calls SettingsManager.StampNintendoWire before assigning the view model, so stamp == incoming means the data already belongs to that profile and neither step runs. Creating a slot stamps its profile, a type change stamps the new category's default before it assigns the profile, deleting a slot clears its stamp, and an unknown stamp adopts the next profile assigned without moving anything. PadForge.Tests/ValveProfileSwitchTests.cs pins it.

A Valve slot also draws its own body instead of the Extended schematic. PadPage's Extended test defers to HMaestroProfileCatalog.HasDedicatedArt (PadPage.xaml.cs:325-345), and a profile change re-runs ApplyViewMode. The meshes are covered on 3D Model System.

Fields

Field Type Description
_ctx HMContext Shared HM SDK context owned by InputManager (InputManager.Step5.VirtualDevices.cs:101, _hmaestroContext). One instance per process.
_profile HMProfile Profile handle resolved via _hmaestroContext.GetProfile(profileId) ?? HMaestroProfileCatalog.GetProfileById(profileId), optionally rebuilt via HMProfileBuilder.FromProfile for descriptor overrides (Extended + Customize only).
_cachedProfileSticks, _cachedProfileTriggers IReadOnlyList<HMSimpleStick/Trigger> Ctor-cached layout lists. HMProfile.Sticks / .Triggers allocate fresh lists per access, and the raw submit path read both per 1 kHz tick (~115 KB/s in the allocation trace). Layout is immutable per profile.
_type VirtualControllerType Reported through Type so SlotControllerTypes-based counting keeps working.
_identityKey string The durable identity key handed to HIDMaestro (1.8.0, HM#60), or null. See Constructor.
_controller HMController Live HM device returned by _ctx.CreateController(_profile, _identityKey). Null until Connect().
_ffbDecoder HMaestroFfbDecoder Set when the active profile's HID descriptor contains a PID FFB block (DescriptorHasPidFfbBlock(descriptorHex) at Connect() time). Includes the synthetic Custom profile and any catalog profile whose FFB capability is wired via HMProfileBuilder. Null when the profile has no PID block.
_fbVibrationStates Vibration[] Cached feedback array from RegisterFeedbackCallback, read by TickFfb() for the per-tick PID re-evaluation on the engine clock.
_ds5Dispatcher DualSensePassthroughDispatcher Per-VC dispatcher forwarding DS5 effect messages (adaptive triggers, lightbar, audio, rumble) to the assigned physical DualSense. Created in RegisterFeedbackCallback only when IsDualSenseVirtual, and rebuilt by RetargetToPad. Torn down first in Disconnect().
_userEffectsDispatcher UserEffectsDispatcher Synthesizes user-configured trigger / lightbar / audio effects from the attached DeviceSlotConfig and forwards them via SDL_SendGamepadEffect. Created by PrepareDeviceEffectsForPublication when Step 5 publishes the controller, or by AttachDeviceConfig when none exists. Torn down in Disconnect().
_dispatcherLock object Orders AttachDeviceConfig (UI thread) against Disconnect (the poll thread's destroy pass) so a teardown cannot race an attach into a zombie dispatcher. PrepareDeviceEffectsForPublication, ReApplyUserEffects and RetargetToPad take it too.
_inboundRumblePack long Controller-local packed game-feedback state for the rumble-to-audio feature (issue #236). See Inbound game-feedback pack.
_axLeftStickX .. _axRightTrigger HMAxis Cached wire-axis keys for the profile's first two sticks and two triggers, resolved once at construction from _profile.AxisMap so the 1 kHz hot path avoids re-walking the layout lists. HMAxis.None means the slot doesn't exist on the profile and the hot path skips it.
_axLeftTriggerField, _axRightTriggerField HMAxis Secondary mirror targets for the trigger rows' own wire-field keys (X360 reads triggers from Vx/Vy while its canonical positions are Z/Rz). HMAxis.None when they coincide with the canonical key. Both positions are written so every HM SDK lane reads live trigger values (discussion #130).
_axesScratch Dictionary<HMAxis, float> Reused per-call axes dict, allocated once and seeded at construction with every declared axis at rest (sticks 0.5, triggers 0), so the hot path stays allocation-free and never Clear()s away extra-axis seeds.
_lastSubmittedGp, _lastSubmitTick, _hasSubmitted Gamepad, long, bool Idle-dedup memory for the plain SubmitGamepadState path (in practice Xbox slots), compared field-by-field against a 16 ms keepalive (SubmitKeepaliveMs = 16, :152).
_lastRawAxes, _lastRawButtons, _lastRawPovs, _lastRawHadMotion, _lastRawSubmitTick, _hasRawSubmitted arrays + flags Idle-dedup memory for the raw path: content compare on the pooled arrays (RawFrameUnchanged / StoreRawFrame, :1091-1136).
s_noRawDedup static bool PADFORGE_NO_RAWDEDUP=1 disables the raw idle dedup at launch (regression bisect switch, :1086-1089).
_disposed bool Dispose guard.

SonyVid (0x054C), DualSensePid (0x0CE6), and DualSenseEdgePid (0x0DF2) are const ushort VID/PID gates. IsDualSenseVirtual returns true when _profile matches the Sony VID and either DualSense PID, and gates the DS5 passthrough dispatcher. NintendoVid (0x057E) gates the Switch Pro branch of the rumble decode.

Properties

Property Type Description
Type VirtualControllerType Xbox, PlayStation, Nintendo, or Extended. Matches the slot's SlotControllerTypes[i].
IsConnected bool True after a successful Connect(), false after Disconnect().
FeedbackPadIndex int Slot index for the rumble/FFB callback's vibrationStates[] write target. The property is read on every callback (not captured), so post-reorder swaps still route correctly.
InboundRumblePack long Volatile.Read of the packed inbound game-feedback state. A fresh VC reads 0, so create / recreate starts silent.
ProfileId string _profile.Id. Examples: "xbox-series-xs-bt", "dualsense-edge", "switch-pro", the Custom profile ID.
ProfileVendorId ushort _profile.VendorId. Step 5 reads it with ProfileProductId to claim the DirectInput OEM-name entry for an Extended slot whose OEM-name override is on. The rumble callback gates on the same value (SonyVid, NintendoVid).
ProfileProductId ushort _profile.ProductId.

Constructor

public HMaestroVirtualController(HMContext ctx, HMProfile profile, VirtualControllerType type,
    string identityKey = null)

Stores the arguments, resolves the cached axis keys, and seeds _axesScratch. Throws ArgumentNullException on null ctx or profile. No driver work happens here. The actual virtual device is created in Connect().

identityKey is the key HIDMaestro 1.8.0 (HM#60) derives every device path, the container id and, for USB/IP personas, the USB serial from, so the pad comes back at the same paths after a PadForge restart, a reboot or a driver upgrade. IdentityKeyForPad builds it as padforge:slot{N}:{Type}, where N is the pad's position in its own family's order list, not its pad index, which moves on a reorder. A pad missing from that list gets padforge:pad{padIndex}:{Type}. A blank key is stored as null, and HIDMaestro then falls back to its controller index.

InputManager.CreateHMaestroController (InputManager.Step5.VirtualDevices.cs:3208) is the only caller. It resolves the profile, applies any per-slot overrides for Customized Extended slots via new HMProfileBuilder().FromProfile(baseProfile) (:3297), then constructs the wrapper with that key (:3395).

Connect()

HMaestroVirtualController.cs:402.

  1. Returns immediately if already connected.
  2. _controller = _ctx.CreateController(_profile, _identityKey). The driver-side device appears here.
  3. Resets _hasSubmitted = false. A fresh HMController means a fresh shared section, so the first frame must always submit instead of waiting out a keepalive window against the previous controller's state.
  4. If DescriptorHasPidFfbBlock(descriptorHex) returns true (any profile with a PID FFB descriptor block, including the synthetic Custom profile and catalog profiles built with HMProfileBuilder FFB pages): allocates _ffbDecoder = new HMaestroFfbDecoder(_controller, descriptorHex) and calls _ffbDecoder.PublishInitialState(). The PID Pool + initial PID State must be published before any host GetFeature can race in. DirectInput's CDIEffect::CreateEffect issues GetFeature(PidPool) up-front to discover capabilities, so lazy init on first OutputReceived is too late.
  5. Sets IsConnected = true.

InputManager calls Connect() from the Task.Run worker in Step 5 Pass 2 (see HIDMaestro Deep Dive#Invariant 1 HM lifecycle does NOT block the polling thread).

Disconnect()

HMaestroVirtualController.cs:516.

  1. Returns immediately if not connected.
  2. Disposes _ds5Dispatcher (best-effort, then nulled) BEFORE the controller, so its channel writer is rejecting enqueues by the time _controller.Dispose() fires its final OutputReceived close events.
  3. Sets _retiring and disposes _userEffectsDispatcher (best-effort, then nulled) under _dispatcherLock, so a concurrent AttachDeviceConfig on the UI thread cannot slip between the dispose and the null or construct a replacement after teardown. Its Dispose unsubscribes the PropertyChanged handler.
  4. _controller?.Dispose(). Driver-side device goes away.
  5. Sets _controller = null, IsConnected = false.

Dispose()

Guarded by _disposed. Calls Disconnect(). The FFB decoder, if present, is released by GC once the controller's OutputReceived subscription is gone.

AttachDeviceConfig(DeviceSlotConfig config)

HMaestroVirtualController.cs:605. Attaches a per-slot PadForge.ViewModels.DeviceSlotConfig so user-configured adaptive-trigger / lightbar / audio effects synthesize and forward to the assigned physical DualSense via SDL_SendGamepadEffect. Initial registration belongs to Step 5's publication: PrepareDeviceEffectsForPublication (:576) builds the dispatcher under the lifecycle lock without starting it, and StartDeferredEffects starts its timer and runs the first ApplyOnce() once the controller has won its slot. InputService calls AttachDeviceConfig to rebind a live slot after device or configuration changes. The dispatcher's runtime resolve returns no targets when the slot has no physical DualSense mapped, so attaching unconditionally is cheap. Runs under _dispatcherLock and gates on IsConnected and _retiring, closing the race where an attach after teardown constructed a zombie dispatcher. A call with no dispatcher allocates _userEffectsDispatcher and runs ApplyOnce(). Otherwise it calls Rebind(config) on the existing dispatcher (idempotent).

ReApplyUserEffects()

HMaestroVirtualController.cs:704. Re-runs _userEffectsDispatcher.ApplyOnce(). Called by InputService on every InputManager.DevicesUpdated tick so a freshly reconnected DualSense gets its configured lightbar / trigger / audio state re-pushed without the user touching a slider. No-op when no dispatcher is attached.

TickFfb()

HMaestroVirtualController.cs:766. Re-evaluates PID effect state on the engine clock by calling _ffbDecoder.ApplyIfDue(_fbVibrationStates[FeedbackPadIndex]). The OutputReceived handler only applies the decoder when the game sends a report, but effect durations expire on the DEVICE clock. Without this per-tick pass, the last computed vibration latches on the physical pad the moment a game goes quiet (discussion #125). ApplyIfDue is recompute-gated: it runs the full Apply only when effect state changed or a finite effect's expiry is due, so the steady-state poll-tick cost is two reads.

After the apply, it publishes the decoder's LastComputedMotors pair into _inboundRumblePack (:785-787), so PID and vendor FFB feed the bass shakers exactly like the Xbox and Sony motor lanes. The pair comes from the decoder's own game-authored compute, never from the shared Vibration array, which keeps test rumble and macro rumble out by provenance.

Every per-tick submit path calls it first. No-op for non-PID profiles (_ffbDecoder == null), when _fbVibrationStates is null, or when the slot's Vibration element is null.

SubmitGamepadState(Gamepad gp)

HMaestroVirtualController.cs:790. Hot path for Xbox slots (PlayStation rides the extended overload below or SubmitRawReport, and Nintendo / Extended ride SubmitRawHidState). Calls TickFfb(), runs the idle dedup, overwrites the six canonical slots in _axesScratch, builds an HMGamepadState { Axes = _axesScratch, Buttons = MapButtons(gp), Hat = MapHat(gp.Buttons) }, and calls _controller.SubmitState(state). It never Clear()s _axesScratch, so the constructor's rest-value seeds for extra axes survive frame to frame.

Idle dedup with a 16 ms keepalive (SubmitKeepaliveMs = 16, skip logic at :815-835). An unchanged state means an identical frame: the driver reads a seqlocked latch and the consumer drives the cadence, so skipping an identical write changes nothing for state-latching consumers. Changes still submit the same tick they happen, so latency is untouched. Only redundant identical frames inside the window drop, which cuts idle submits ~94% at the default 1 kHz poll. RawInput consumers see idle reports at ~62 Hz instead of the poll rate.

The keepalive is 16 ms, not longer, because three driver watchdogs bound how long SeqNo may sit still:

Watchdog Location Trip condition
Handle recycle driver.c SharedInputWorkerProc 500 ms without an event signal (WAIT_TIMEOUT)
Stale-wakeup recycle driver.c more than 250 signals without a SeqNo advance (keepalives advance SeqNo, resetting it)
GIP teardown companion.c ReadGipData more than 500 consecutive unchanged-SeqNo READS (the 8 ms pump plus every IOCTL_XUSB_GET_STATE), after which DecodeGipToXInput zeroes the XInput state

The GIP counter is read-rate-bound, not time-bound. A 250 ms keepalive let any consumer mix totaling ~2,000 reads/sec force repeated one-frame releases of held inputs. 16 ms tolerates ~31,000 reads/sec, the same margin the slowest configurable baseline poll interval already had.

Axis normalization. Values land in _axesScratch (a Dictionary<HMAxis, float>) keyed by the wire-axis resolved at construction, not by named HMGamepadState fields (those no longer exist as of HM v1.3.9). Everything normalizes to [0, 1] uniformly: sticks center at 0.5, triggers release at 0. A write is skipped when its cached key is HMAxis.None.

Gamepad field Scratch key Formula
ThumbLX _axLeftStickX (gp.ThumbLX + 32768f) / 65535f
ThumbLY _axLeftStickY (32768f - gp.ThumbLY) / 65535f (Y flipped: XInput Y+ = up, HID Y+ = down)
ThumbRX _axRightStickX (gp.ThumbRX + 32768f) / 65535f
ThumbRY _axRightStickY (32768f - gp.ThumbRY) / 65535f
LeftTrigger _axLeftTrigger (+ _axLeftTriggerField) gp.LeftTrigger / 65535f
RightTrigger _axRightTrigger (+ _axRightTriggerField) gp.RightTrigger / 65535f

Trigger values are mirrored to both the canonical key and the trigger row's own wire-field key when they differ, so every HM SDK lane reads live values instead of the 0.5 seed (discussion #130).

Buttons. MapButtons (HMaestroVirtualController.cs:1962) translates 18 buttons to HMButton flags: A, B, X, Y, LeftBumper, RightBumper, Back, Start, LeftStick, RightStick, Guide, Touchpad (gp.Buttons & 0x0800) from the 16-bit mask, plus six separate bools: Share, Misc1 (DualSense mic mute), LeftPaddle / RightPaddle (Edge back paddles), and LeftPaddle2 / RightPaddle2 (Edge front Fn). HM silently drops any of these on profiles whose descriptor doesn't declare that button position, because since v1.5.1 the buttonMaps carry an explicit -1 for undeclared bits.

Hat. MapHat (HMaestroVirtualController.cs:2109) collapses the four D-Pad bits into a single HMHat direction (North, NorthEast, East, SouthEast, South, SouthWest, West, NorthWest, None). Diagonals take priority over cardinals.

PlayStation overload. SubmitGamepadState(gp, in TouchpadState, in MotionSnapshot, byte batteryPercent, bool batteryCharging) (:914) performs the same axis/button/hat population, then adds touchpad finger tracking (synthesized tracking IDs), gyro/accel scaled to the Sony int16 wire values (GyroScale = 16, AccelScale = 8192, the inverse of SDL3's no-calibration HIDAPI decode), sensor timestamp in 0.33 µs ticks, and battery level. Sony BT virtuals depend on it entirely (their Report 0x31 vendor blob is written by HM's encoder from these state fields). This overload does not dedup.

SubmitRawHidState(RawHidState raw, int sticks, int triggers)

HMaestroVirtualController.cs:1074, plus the overload taking in MotionSnapshot at :1138 (the 3-argument form forwards with default). The overload runs the idle dedup and submits what BuildRawHidState (:1179) returns. That method needs no device, so a test can hand its state to HIDMaestro's own encoders. Used by Step 5 for every Nintendo slot and every Extended slot, except a Valve profile with a packer (SubmitRawReport) and a layout past 32 buttons or one hat (SubmitPackedExtendedReport): SlotRawHidSurface is true for both categories (InputService.cs:6516-6518), and the submit site passes the slot's layout counts and MotionSnapshot (InputManager.Step5.VirtualDevices.cs:2366-2374). Submits up to 8 axes, up to 32 button bits (the named ones plus profile-specific extras), and 1 hat from a single 8-way POV.

Why SubmitGamepadState is not enough: MapButtons covers a fixed named set, but the XInput-shaped Gamepad struct can't express arbitrary profile-specific button bits or a per-profile axis layout. Those extras would be truncated. This path passes the full 32-bit mask and drives the profile's stick/trigger rows directly.

Idle dedup: the exact basic-path shape (16 ms keepalive), with a content compare on the pooled arrays (RawFrameUnchanged, :1091-1108). An identical frame within the window skips the seqlock publish + SetEvent. Motion frames never dedup: SensorTimestamp must advance for downstream fusion, so while motion.HasMotion is set every frame submits (:1151-1168). PADFORGE_NO_RAWDEDUP=1 disables this path's dedup at launch (:1086-1089).

Axis layout: computed by replicating ExtendedSlotConfig.ComputeAxisLayout. Sticks and triggers are interleaved in groups of (stickX, stickY, trigger) while both are available, then trailing sticks pack at (prev, prev+1) and trailing triggers pack one index at a time. Hardcoded (3, 4) for right-stick X/Y silently dropped Stick 2 Y on every 0-trigger or 1-trigger profile, hence the explicit interleave logic.

Axis conversion (raw signed short to HM [0, 1] float), applied to BOTH sticks and triggers. raw.Axes is already HID-convention (Y+ = down, per Step 3), so sticks pass through the same shift with no extra Y inversion. Sticks rest at signed 0, which ToHmRange maps to 0.5. Triggers rest at short.MinValue, which maps to 0.

float ToHmRange(short v) => (v + 32768f) / 65535f;

Values write into _axesScratch keyed by the cached profile stick/trigger rows. This path DOES Clear() the scratch dict first (unlike the SubmitGamepadState overloads), then repopulates every axis the profile exposes.

Button mask: all 32 bits of RawHidState.IsButtonPressed(i) are passed through to (HMButton)buttonMask. HidReportBuilder iterates bits 0..31, so any bit beyond the named set surfaces at the descriptor's corresponding position (direct index, or via the profile's ButtonMap if declared). Profiles with more buttons than the named set (Stadia, flight sticks, wheels) rely on this.

Hat: raw.Povs[0] (centidegrees, -1 = centered) is rounded to the nearest octant via ((pov + 2250) / 4500) % 8, then mapped to HMHat.

Switch 2 Pro state

The mask and the hat above are what HIDMaestro reads for most profiles, the first Pro Controller included: SwitchProPacker takes HMGamepadState.Buttons as bit N for button N. The two Switch 2 Pro profiles read names. The plain profile's report 0x09 lists its button bits by HMButton name, and VendorBlobCodec sets a bit while the flag of that name is set. Switch2ProPacker.BuildBody reads the same names for the composite. Both take ZL and ZR from the trigger axes and the D-pad from Hat.

Switch2ProStateMap (PadForge.App/Common/Input/Switch2ProStateMap.cs) translates. The controller builds one in its constructor for any profile in the Switch 2 Pro wire family (NintendoPreviewMap.FamilyOf), and BuildRawHidState runs the frame's rows through it (:1257). Fifteen rows become named HMButton flags, the four D-pad rows become the hat through MapHat, and the ZL and ZR rows write 1 or 0 to the profile's left and right trigger axes on every frame. Each row is resolved through NintendoPreviewMap.IndexOf, so the wire order stays in one table.

Before PadForge commit f1e3b6c7 the slot sent the raw mask, and no row pressed its own control: B pressed A, R pressed L, the D-pad rows pressed the stick clicks and Home, and the last five rows pressed nothing. Under HIDMaestro 1.10.1 a resting slot also held ZR, because the SDK read the right stick's Y for the trigger axis the slot never wrote. Switch2ProCompositeTests.EveryRowReachesItsOwnWireBit runs HIDMaestro's two encoders on the slot's state and requires each of the 21 rows to set its own wire bit.

The composite builds its reports on the device side, so it takes no finished frame: HMController.SubmitRawReport and SubmitRawExtendedReport throw NotSupportedException on it. HMaestroVirtualController.DeviceBuildsReports (:174) names such a profile by HIDMaestro's own test, a USB/IP profile on 057E:2069. No packer table lists it, and Step 5 skips the packed-report branch for it (InputManager.Step5.VirtualDevices.cs:2353).

IMU channel (HM v1.3.18): when motion.HasMotion, the state's AccelGX/GY/GZ and GyroDpsX/Y/Z fields are filled verbatim from the MotionSnapshot (already g and deg/s in the SDL sensor frame, :1321-1326). The per-profile packer owns the wire frame and scale, so the vector round-trips bit-consistent to SDL on the client. This is the Nintendo category's gyro passthrough.

SubmitRawReport(ReadOnlySpan report)

HMaestroVirtualController.cs:730. Submits a pre-packed frame (after a TickFfb()). Step 5 calls it for PlayStation slots whose profile has a SonyReportPackers packer (the USB Report 0x01 layouts, carrying the touchpad, gyro, accel and battery fields HMGamepadState doesn't model), and for every Extended slot on a Valve profile that has a packer. On USB Sony slots this is the only submit per poll now that Step 5 skips the redundant extended leg when a raw packer exists.

Two driver-side paths, chosen once at construction by _extendedFrameCarriesItsOwnId (true when the profile declares a non-zero input report id and is always armed):

Frame Call Driver behavior
Data bytes only _controller.SubmitRawReport The driver prepends the descriptor's first report id
Carries its own id _controller.SubmitRawExtendedReport Emitted verbatim (HIDMaestro v1.7.1, HIDMaestro#58)

HIDMaestro can infer the second case from frame length, but PadForge says it outright, because the inference flips silently the day a packer size or a declared size moves by one byte. On the 2026 Steam Controller the prepend branch means that pad's lizard-mode mouse. See Descriptors that lead with a mouse. PackerFramesCarryTheirOwnReportId pins the pairing.

Inbound game-feedback pack (issue #236)

The controller-local source for the rumble-to-audio feature (the Pad page's "Bass Shakers" tab). Every rumble decode branch packs the game-authored motor values into _inboundRumblePack via Engine.Common.LfeOutputState.Pack(low, high, triggerLeft, triggerRight) (PadForge.Engine/Common/LfeOutputState.cs, four ushort voices in one long so both sides use a single Volatile access, no locks, no torn reads).

Contract points:

  • Keyed by the VC instance, never by pad index. The slot-reorder reroute re-points _virtualControllers[] and the pack travels with its VC, so a swap can never land slot A's rumble on slot B the way a captured FeedbackPadIndex could. The poll thread's feedback lane reads InboundRumblePack through the CURRENT array position each tick.
  • Provenance-clean by construction. Only the game-write callbacks fill it: the XInput branch (:1778), the Steam Deck persona feature-command branch (:1797-1878, 0xEB / 0xEA / 0x8F), the Xbox Series BT short-HID branch (:1905), the Xbox long-HID branch (:1925, body motors only, trigger voices preserved), the gated Sony branch (:1620), the Nintendo branch (:1635), the DualShock 3 (SIXAXIS) branch (:1649), and the PID FFB lane through TickFfb (:766). Test rumble and macro rumble never cross it, which is what lets the audio path read it without feedback loops.
  • Zeros pass through unfiltered. Browser Gamepad API dual-rumble is a square wave alternating full/zero. The off phase is part of the duty cycle, not noise.
  • A fresh VC reads 0, so create / recreate starts silent.

The audio lane is wider than the pack. Step 5's UpdateRumbleAudioLane takes the per-voice maximum of the pack and the slot's VibrationStates entry, because the preview's test rumble buttons write VibrationStates directly and never cross the VC's callbacks. Game rumble fills both with the same values and merges to itself. On a composite DualSense persona it also merges the persona's haptic level, PersonaHapticLevel: the loudness of the persona's haptic channels (left on the low voice, right on the high), or 0 once it is more than PersonaHapticRumble.StaleMs (100 ms) old. It reads the feed through _personaAudioFeeds[slot], which a reorder moves with its controller, as the pack moves. A game that plays the DualSense's haptics through that audio leaves the rumble bits clear, so the pack reads 0 and only this merge reaches the shaker (discussion #522). The same level reaches the slot's controllers as rumble (Input Pipeline). The per-slot audio routing UI states that scope: "Works with Xbox, DualShock 4 / DualSense, and Nintendo Switch Pro virtual controllers, plus Extended virtual controllers with force feedback, such as racing wheels. Game feedback and Test Rumble play through the audio output. Macro rumble stays on the controller."

UnregisterFeedback()

HMaestroVirtualController.cs:1409. Called synchronously by DestroyVirtualController BEFORE the motor zero. Parks FeedbackPadIndex at -1 and nulls _fbVibrationStates. The driver-side handlers die only when the async dispose reaches _controller.Dispose() (seconds later for xinputhid), and every handler guards on FeedbackPadIndex, so parking it makes late callbacks no-op instead of repopulating a slot this VC no longer owns.

RegisterFeedbackCallback(int padIndex, Vibration[] vibrationStates)

HMaestroVirtualController.cs:1417. Stores padIndex in FeedbackPadIndex, caches vibrationStates in _fbVibrationStates for the per-tick TickFfb() pass, then (when _controller != null) subscribes to both OutputDecoded and OutputReceived.

Setup work.

  1. For DualSense virtuals (IsDualSenseVirtual), allocates a DualSensePassthroughDispatcher(padIndex) and calls Start(). Its lifetime matches the subscription.
  2. Subscribes to _controller.OutputDecoded (:1471). This carries pre-decoded, transport-agnostic fields, and serves three producers: Sony profiles (DS4 / DS5, either transport), both DualShock 3 (SIXAXIS) profiles (their own motor fields, below), and the virtual Switch Pro (HIDMaestro's SDK decodes the 0x01/0x10 HD-rumble writes itself and emits the motor fields only for genuine rumble frames).
  3. Subscribes to _controller.OutputReceived (:1654) for the XInput, Steam Deck persona, Xbox HID, and PID FFB paths below.

OutputDecoded motor gate. When leftMotor / rightMotor bytes are present, the write into vibrationStates[idx] (byte * 257) is allowed by MotorWriteAllowed(_profile.VendorId, sonyMotorsValid || sonyRelease) (:1612): Sony profiles require the full trust gate, while any other vendor (Switch Pro's synthesized decode, future flag-less profiles) keeps unconditional trust, because the validity-flag semantics are Sony's. The gate is SonyFrameValid (:2031, legs 1 and 2) plus SonyRumbleClaimed (:2043, leg 3), and it requires all three legs, per linux-hid hid-playstation.c (motor bytes are assigned only inside the block that asserts VALID_FLAG0 bit 0, and an audio/lightbar-only report carries motor=0 meaning "ignore", not "stop"):

  1. declaredSize > 0 and RawBytes.Length >= declaredSize (at least, not exactly: Windows sizes every BT host write to the largest declared output report, so an equality was unsatisfiable on Bluetooth and silently killed rumble, lightbar, and triggers on every BT frame).
  2. CRC valid (CrcValid alone is insufficient: it initializes true and is skipped when the footer is absent, hence the length leg).
  3. The motor-valid flag asserted: mask 0x01 for DS4, 0x03 for DS5. A DualSense frame also claims the motors with validFlag2 bit 2 (0x04), the improved-emulation bit a writer on firmware 2.24 or newer can set alone.

A failing gate PRESERVES the previous motors, for both consumers (the VibrationStates write and the #236 pack): before the gate existed, a lightbar-only report zeroed rumble on every non-Sony device on the slot. Flag asserted with both bytes zero IS a real stop. The DualSense is the exception on the flag leg (#434): a frame that passes legs 1 and 2 with every rumble flag clear is a stop, the way SDL3 stops rumble, so both consumers get zeros. The DualShock 4 keeps the preserve rule. When the gate passes, the pack is written. On Nintendo profiles (NintendoVid, :1624-1638) the pack rides directly, because that wire has no validFlag/CRC to gate on and HIDMaestro only emits motors for genuine rumble frames.

DualShock 3 (SIXAXIS) motors. Both DualShock 3 (SIXAXIS) profiles decode the output report's motor bytes at the offsets hid-sony's struct sixaxis_rumble names, as rightMotorOn (the small motor, on or off) and leftMotorForce (the large motor, 0 to 255), and never as leftMotor / rightMotor. HMaestroVirtualController.TryDualShock3Motors reads them: the large motor at force * 257, the small one full or off, the two bytes SDL's PS3 driver writes (SDL_hidapi_ps3.c HIDAPI_DriverPS3_UpdateEffects). The report has no validity flag, and both hosts send the whole report, motors included, with every LED change, so a full-length frame is the current motor state and a frame with both motors off is a stop. The result goes to vibrationStates and the inbound pack. The plain profile decodes them since HIDMaestro 1.10.1 (HIDMaestro#65). Before that it decoded no output report, and game rumble reached no controller on it.

DS5 passthrough forward. When the DualSense passthrough is active and an effectPayload byte[] is present, the handler enqueues it to _ds5Dispatcher (report 0x02) and calls UserEffectsDispatcher.NotifyExternalSubsystems(idx, effectPayload). The forward is integrity-gated too (declaredSize > 0, length at least declared, CrcValid, :1529-1554): a full-length BT report with a corrupt CRC decodes every field with CrcValid=false, and forwarding it would re-frame corrupt bytes into a fresh physical write and poison the grace-window subsystem mirror.

PadForge's own rumble on a pass-through target. The dispatcher's 30 Hz pass and this lane write the same DualSense, and a frame without valid_flag0 bit 1 puts the pad back on audio haptics (SDL's SDL_hidapi_ps5.c, "Leaving emulated rumble bits off will restore audio haptics", and the #434 bench, within 100 ms). While PadForge owns the rumble (macro, audio, steering angle or test rumble, or the DualSense haptics converted to rumble) and the game sends only audio-haptics frames, each pass publishes the rumble half of its frame per device (DualSensePassthroughDispatcher.PublishRumbleClaim), and the lane writes that claim into every forwarded frame that does not select rumble itself, before the Bluetooth CRC (InjectRumbleClaim). A frame that selects rumble is the game's own rumble and goes out unchanged. A claim lapses 100 ms after its last pass, the shutdown release carries none, and repeat detection and the merge keep comparing the game's own bytes. Inside a game's 1.5-second rumble release grace, a DualSense whose haptic route is down takes the converted haptics alone (PersonaHapticRumble.ForDevice, wired as UserEffectsDispatcher.SlotPersonaRumbleForDeviceProvider), and every other PadForge source keeps the grace.

The OutputReceived handler dispatches by pkt.Source, HMaestroProfileCatalog.IsXboxProfile(_profile), and _ffbDecoder != null (never by literal VID). A leading branch also forwards Sony vendor test commands (HidFeature, report 0x80) to _ds5Dispatcher.EnqueueFeature and returns.

Gate pkt.Source Length Meaning Motor write
any XInput >= 5 XUSB SET_STATE rumble: data[2] = L, data[3] = R main motors. The wire carries no trigger motors, so every vibration write zeroes them. An exactly five-byte LED-only write (flags byte data[4] with 0x01 set and 0x02 clear) is not a motor frame and returns without a write. * 257
ProfileId == steam-deck-composite HidFeature >= 1 Steam Deck persona haptics (#338), decoded per HandheldCompanion's SteamDeckTarget.HandleOutput: data[0] 0xEB trigger rumble (u16 L/R at bytes 5/7, landed on the main motors), 0xEA haptic (intensity at byte 4 plus signed gain at byte 5, x8, both motors), 0x8F pulse train (period/count u16 at 5/7, gain at 9, both motors, auto-zero when the train ends). Any other command byte returns. u16 direct (0xEB) / * 257
IsXboxProfile HidOutput 4..7 Xbox Series BT short HID rumble: data[0] / data[1] = L/R trigger impulse motors, data[2] / data[3] = L/R main motors, magnitude 0..100 * 655
IsXboxProfile HidOutput >= 8 Xbox wired / wireless-receiver long rumble: data[5] = L, data[6] = R * 257
_ffbDecoder != null HidOutput any HID PID FFB output report. Routes to _ffbDecoder.OnHidOutput(reportId, data), then _ffbDecoder.Apply(vibrationStates[idx]). Catalog profiles built with AddPidFfbBlock keep their original VID/PID here. written by decoder
_ffbDecoder != null HidFeature any HID PID FFB feature report (Create New Effect). Routes to _ffbDecoder.OnHidFeature(reportId, data). none directly

Each of the first four branches also packs the decoded pair into the inbound game-feedback pack.

The Xbox Series BT 0..100 magnitude scaled by 655 was verified against HM's own test app log of xbox-series-xs-bt plus gamepad-tester.com. Browser Gamepad API square-wave dual-rumble alternates hi=127 / hi=0. The "off" phase is part of the duty cycle, not noise, so packets where both motor bytes are zero must still be forwarded. The Xbox short-HID trigger bytes at data[0] / data[1] were confirmed from a 1518-capture Game Controller Tester impulse-trigger run (2026-05-19, all len=7).

Threading: the callback runs on the HM SDK's output-dispatch thread. Vibration motor fields are ushort and aligned writes are atomic on x64. The polling thread reads these for rumble forwarding, dispatching to one of five writers depending on the source pad family: UserEffectsDispatcher for Sony pads (DualShock 4 / DualSense), XboxImpulseHidWriter raw HID for Xbox One+ pads (Xbox One / Elite / Series), PadixConverterRawHidWriter raw HID for the Padix PSX/USB converter (Buffalo BSGC101 / BSGC201, #440), LogitechRawHidWriter / FanatecRawHidWriter / ThrustmasterRawHidWriter raw HID for the vendor-FFB family (Logitech / Fanatec / Thrustmaster wheels plus Fanatec pedals, gated as isVendorFfb and intercepted before the SDL path), or SDL_RumbleJoystick / SDL haptic effects for everything else. Per the architecture-invariant rules, each pad family has a single writer, and SDL rumble is skipped on the Sony, Xbox One+, Padix converter, and vendor-FFB families.

HMaestroFfbDecoder

File: PadForge.App/Common/Input/HMaestroFfbDecoder.cs Visibility: internal sealed Allocated: by HMaestroVirtualController.Connect() when the profile's HID descriptor contains a PID FFB block (gate: DescriptorHasPidFfbBlock(descriptorHex)).

Decodes HID PID 1.0 effect reports delivered through HMOutputPacket and aggregates running effects into a single Vibration for the physical FFB device. One instance per FFB-capable virtual controller (the synthetic Custom profile, or a catalog profile with the FFB block in its descriptor).

The dispatch logic mirrors the v2 vJoy FfbCallback semantics:

  • Dominant running effect drives Vibration.Direction and Vibration.SignedMagnitude.
  • Running effects polar-split into left/right motor scalars for rumble-only physical devices.
  • Condition effects pass through to Vibration.ConditionAxes.

Report-ID dispatch

Report IDs are defined in HMaestroFfbDescriptor.OutputReportId and dispatched by OnHidOutput (HMaestroFfbDecoder.cs:206):

Report ID Constant Decoder
0x11 SetEffect DecodeSetEffect (also handled by OnHidFeature for Create New Effect)
0x13 SetCondition DecodeSetCondition
0x14 SetPeriodic DecodeSetPeriodic
0x15 SetConstantForce DecodeSetConstant
0x16 SetRampForce DecodeSetRamp
0x1A EffectOperation DecodeEffectOperation
0x1B BlockFree DecodeBlockFree
0x1C DeviceControl DecodeDeviceControl
0x1D DeviceGain DecodeDeviceGain

The descriptor bytes that carry these IDs to the host are produced by HIDMaestro v1.1.41+'s HidDescriptorBuilder.AddPidFfbBlock(). PadForge only needs the IDs. It does not emit the descriptor itself.

PublishInitialState()

HMaestroFfbDecoder.cs:119. Called from HMaestroVirtualController.Connect() immediately after CreateController. Publishes the PID Pool and the initial PID State via _controller.PublishPidPool(...) and _controller.PublishPidState(0, _stateFlags). Without these the SDK returns STATUS_NO_SUCH_DEVICE for the Pool Report and DirectInput cleanly concludes "no FFB". This is the gate that turns the Custom-VID device into a real DirectInput PID FFB device on the wire.

Block Load is driver-owned: HM v1.1.37+ allocates the EffectBlockIndex and writes BL fields synchronously inside the SetFeature(0x11) IOCTL handler, so PadForge does not pre-publish a Block Load.

Effect tracking

private readonly Dictionary<byte, EffectState> _effects;   // keyed by EffectBlockIndex
private byte _deviceGain = 255;                            // 0..255 from DeviceGain report
private byte _lastEbi;                                     // last allocated EBI
private PidStateFlags _stateFlags;                         // ActuatorsEnabled | ActuatorPower
private EffectState _pending;                              // EBI=0 parameter buffer

pid.dll's flow on CreateEffect is:

  1. Set Periodic / Set Constant / Set Ramp / Set Condition with EBI=0.
  2. SetFeature(0x11) Create New Effect. Driver allocates EBI=N.
  3. Set Effect (0x11) with EBI=N to bind type, duration, direction.

Step 1 carries the magnitude / period. _pending captures it, then OnHidFeature (step 2) drains it into the freshly created effect at EBI=N. DecodeSetEffect also drains _pending when it sees a non-zero EBI, because some host stacks pick the EBI internally and never round-trip through SetFeature.

Apply(Vibration vib) and ApplyIfDue(Vibration vib)

Apply at HMaestroFfbDecoder.cs:285. ApplyIfDue at :275. ApplyIfDue is the poll-tick entry used by TickFfb: it runs the full Apply only when effect state changed (_applyDirty) or a finite effect's expiry is due (_nextExpiryTick). Skipping is byte-identical: vib retains the last computed values and LastComputedMotors is unchanged. Before this gate, the identical projection was recomputed under the lock at poll rate.

Apply aggregates running effects into the supplied Vibration:

  1. For each running, non-zero effect: gain-scale magnitude (absMag * (es.Gain / 255.0)), pick dominant by gain-scaled magnitude, polar-split via sin((direction / 32767 * 360 + 180) % 360) into leftScale / rightScale, accumulate into leftSum / rightSum.
  2. Apply device-level gain: * (_deviceGain / 255.0).
  3. Scale 0..10000 to 0..65535 and clamp. Write to vib.LeftMotorSpeed and vib.RightMotorSpeed.
  4. If any effect was running, set vib.HasDirectionalData = true and populate EffectType, SignedMagnitude, Direction, Period, DeviceGain from the dominant effect. ForceFeedbackState consumes these to drive SDL_HapticEffect on physical FFB devices.
  5. If a Spring / Damper / Inertia / Friction effect is running, populate vib.ConditionAxes from its ConditionAxisCount axes, then vib.HasConditionData = true. ForceFeedbackState.SetConditionHapticForces maps these to SDL_HapticCondition.

The "where force COMES FROM" to "toward" 180-degree shift is per HID PID 1.0: a force coming from East (90 degrees) pushes West, biasing the left motor.

Apply also publishes the computed pair atomically into LastComputedMotors (HMaestroFfbDecoder.cs:40), the game-authored source the #236 inbound pack reads in TickFfb. It is never sourced from the shared Vibration object, so the bass-shaker path inherits the decoder's provenance.

HMaestroVRController

Namespace: PadForge.Common.Input Visibility: internal sealed File: PadForge.App/Common/Input/HMaestroVRController.cs Backs: VirtualControllerType.Vr Max instances: 1 (SettingsManager.MaxVrSlots, SettingsManager.cs:97). Enforced by SettingsManager.CanSlotTakeType (:111), which short-circuits to true for every other type

A SteamVR left + right hand pair (issue #49) served by HIDMaestro's native OpenVR driver (HM#32, v1.6.0). One instance drives BOTH hands through one HMVRController pipe. The driver registers the devices with SteamVR only while this consumer is live, so an idle machine shows no phantom controllers.

All calls are in-process (named-pipe transport inside HIDMaestro.Core), so Connect / Disconnect need none of the bounded-RPC ceremony the MIDI wrapper carries for midisrv. Step 5 constructs it directly, with no profile and no HMContext (InputManager.Step5.VirtualDevices.cs:2879).

IsAvailable()

HMaestroVRController.cs:87. True when SteamVR itself is present (HMVR.IsSteamVRInstalled). Without SteamVR the driver has no host to register with, so slot creation refuses early with a clear message instead of a silent dead pipe. Cached for 5 seconds (AvailabilityTtlMs), because the probe walks Steam's library metadata on disk and the sidebar rail queries once per slot. A separate s_availHasValue flag marks a real answer: seeding the cache timestamp with long.MinValue overflowed the TTL compare to a large negative value, which always reads as inside the TTL, so the first call returned the default false without ever probing. ResetAvailability() (:120) clears it.

Connect()

HMaestroVRController.cs:122. Throws InvalidOperationException when SteamVR is absent or when HMVR.EnsureDriverRegistered() fails. Otherwise constructs an HMVRController, subscribes HapticReceived, and flips _connected.

Disconnect()

HMaestroVRController.cs:140. Clears _connected first, unsubscribes and disposes the pipe, then under _hapticLock disposes the expiry timer and zeroes both haptic lanes.

SubmitVrState(in VrRawState raw)

HMaestroVRController.cs:191. Packs the pipeline's VrRawState into the driver's HMVRState and submits it. Button bits are identical by construction (VrHandRaw.Buttons mirrors HMVRButton), so the conversion is a cast, never a table.

Field Source domain Wire
Buttons byte, 8 flags (HMVRButton)hand.Buttons
Trigger, Grip one-sided 0..32767 / 32767f to 0..1
StickX bipolar -32768..32767 / 32767f positive, / 32768f negative
StickY same same, then negated
PoseValid n/a always false in v1. The driver then uses its default pose, which anchors both hands ahead of the HMD (0.5 m forward, 0.15 m out, 0.1 m up) so they follow the headset (driver/openvr/src/controller_device.cpp GetPose)

StickY carries the lane's single sign flip. Step 3's evaluator output keeps SDL's native convention (Y positive = down), OpenVR's joystick Y is positive-up, and the one-seam rule puts the flip at the pack seam rather than anywhere upstream.

SubmitGamepadState is a no-op, kept for interface compliance.

Haptics

OnHapticReceived (:228) fans OpenVR pulses into the slot's Vibration entry, the same lane game rumble rides: left hand to LeftMotorSpeed, right hand to RightMotorSpeed, amplitude clamped 0..1 and scaled by 65535.

A pulse must decay, because the rumble path latches motor speeds until someone writes zero. Each hand keeps an expiry deadline and a one-shot Timer zeroes its lane when the last pulse ends (ScheduleExpiryLocked at :265, OnHapticExpiry at :280). MinPulseMs = 50 floors a pulse's audible length: OpenVR apps send micro-pulses, often 0 to 5 ms, at high repeat rates, and a literal duration would expire before the 16 ms rumble keepalive ever forwarded it.

The handler re-checks _connected INSIDE _hapticLock. Disconnect flips the flag and only then takes the lock, so a check outside it can pass, block, and resume after teardown, re-latching a motor on a slot the VC no longer drives and arming a timer nothing will dispose.

VrRawState

PadForge.Engine/Common/VrRawState.cs. All value fields on purpose, so a struct assign copies (the KbmRawState discipline).

public struct VrHandRaw
{
    public byte Buttons;   // mirrors HMVRButton: System=1, A=2, ATouch=4, B=8,
                           // BTouch=16, TriggerClick=32, GripClick=64, StickClick=128
    public short Trigger;  // one-sided 0..32767
    public short Grip;     // one-sided 0..32767
    public short StickX;   // bipolar -32768..32767
    public short StickY;
}

public struct VrRawState
{
    public VrHandRaw Left;
    public VrHandRaw Right;
    public void Clear();
    public void Merge(in VrRawState other);
}

Merge follows the gamepad-merge convention: buttons OR together, axes keep the larger deflection. MergeHand widens to int before Math.Abs, because the short overload throws OverflowException at short.MinValue, which is exactly what a fully deflected axis produces. Two devices on a VR slot plus one full deflection therefore threw out of Step 4 every poll and cleared the slot's combined output about 1000 times a second.

VrLayout in the same file is the shared mapping-key vocabulary ("VrLTrigger", "VrRStickXNeg", and so on), indexed by HMVRButton bit position so the Step 3 mapper, the layout translation, and the mapping UI all agree on one table.

MidiVirtualController

Namespace: PadForge.Common.Input Visibility: internal sealed API: three backends behind IMidiBackend (MidiBackend.cs). MidiBackendInBox drives the in-box Windows.Devices.Midi2, whose projection C#/WinRT 2.2.0 generates from Resources/WinMD/Windows.Devices.Midi2.winmd (Microsoft's 0.99.88-preview.10 metadata). The implementation is the copy Windows registers in System32, and PadForge ships none. MidiBackendAppSdk drives the Microsoft.Windows.Devices.Midi2 App SDK runtime through the 1.0.16-rc.3.7 projection (from nuget-local/): Microsoft's install, or PadForge's build of 1.0.17-rc.4.25 that the Settings card installs. MidiBackendLegacy (MidiBackendLegacy.cs) drives the legacy WinMM API through IWinMmMidi, a seam over winmm.dll's MIDI functions. Max instances: 16 (MaxMidiSlots = MaxPads) Availability: IsAvailable() picks the API through MidiApiSelection.Choose and starts it, and where that API is missing or will not start, starts the legacy one. The in-box API is tried first at build 26200 and later. The runtime runs when the in-box classes are not registered (REGDB_E_CLASSNOTREG), it is installed, and the build is 26100 or later. While no API starts, the add-controller popup's MIDI button is dimmed, does nothing, and shows the tooltip "MIDI (not running, see the Windows MIDI Services card in Settings)".

Under Windows MIDI Services it creates a system-wide virtual MIDI endpoint, which DAWs and MIDI applications list as "PadForge MIDI N". The legacy API cannot create an endpoint, so there the controller opens the existing output port its OutputPort names.

Type gating: the dashboard's MIDI type tile is inert while DashboardViewModel.IsMidiAvailable is false (DashboardPage.xaml.cs:138-145), so a slot cannot be switched to MIDI on a machine where no MIDI API starts. The VR tile gates the same way on HMaestroVRController.IsAvailable() (SteamVR), and the shared type-change handler enforces the one-slot VR cap through SettingsManager.CanSlotTakeType. Every other type accepts the switch.

Static Fields

Field Type Description
_probeState int (volatile) The probe's cached answer: ProbeNotRun, ProbeAvailable or ProbeUnavailable. One word, written under _availLock and read without it
_probeTimedOut bool (volatile) Set when an ask gives up on a probe at ProbeTimeoutMs. Later asks return false and keep the recovery going. Cleared when that probe answers or a reset runs
ProbeTimeoutMs int How long an ask waits for one probe, 10 000 ms. Tests shorten it
HungProbeReturnMs int How long the recovery waits for a hung probe to return after the service restart, 30 000 ms
s_probeRecoveryRunning int 1 while a hung-probe recovery runs, so a second hang starts no second one
s_generation int Bumped by every reset: ResetAvailability(), a service restart PadForge performs (RestartService), the hung-probe recovery, a service instance that changed under PadForge (CheckServiceInstance), and the end of an uninstall's release (EndUninstallHold). Read through Generation
_runtimeSuppressed bool (volatile) Latched by SuppressForUninstall() so no check reloads the runtime during its uninstall. Cleared only when the last release that holds it ends (EndUninstallHold), never by ResetAvailability()
_availLock object Lock protecting availability check (readonly)
s_liveEndpoints ConcurrentDictionary<string, long> Per-process registry of endpoint ids this process created: creating, ready, or abandoned-at-tick. The janitor keys off it instead of guessing from names
_backend IMidiBackend (volatile) The backend the last successful probe started. MIDI input rides the same one (Backend)
s_backendFactory Func<IMidiBackend> CreateBackend in production. Tests swap it through UseBackendFactoryForTest
s_legacyFactory Func<IMidiBackend> CreateLegacyBackend in production. A test that names none in UseBackendFactoryForTest gets no fallback, so a fake that refuses to start never reaches the real WinMM

Instance Fields

Field Type Description
_endpoint IMidiVirtualEndpoint The backend's open virtual device: its session, the device (SuppressHandledMessages = true) and the device-side connection
_connected bool Whether this controller is connected
_disposed bool Dispose guard
_uniqueEndpointId string This creation's registry id, the key the janitor and the live-endpoint scanner use
_creationGen int Creation generation. A superseded (timed-out) attempt commits nothing
_padIndex int Slot index (readonly)
_channel int MIDI channel 0–15, clamped. Set by the constructor, then by ApplyLayout
_instanceNum int 1-based MIDI-type instance number (readonly)
_lastCcValues byte[] Last sent CC values (change detection, initialized to 64 = center)
_lastNotes bool[] Last sent note states (change detection)
_ccSent bool[] Which CC entries have gone out since they took their number, so a switch controller is released only where PadForge pressed it
_owedNoteOff, _owedCc, _owedCount bool[2048], int[2048], int What the receiver is still owed after the API refused it, keyed by channel and number as the wire word packs them (WireKey): a Note Off, and a controller's value plus one, under _sendLock
_sendQueue, _waitingCcs, _sendThread, _sendClosing, _sendDrainOver Queue<QueuedSend>, WaitingCc[][], Thread, bool The send worker's queue, the controller values that wait (one per channel and controller number), its thread, and the two marks of a teardown (begun, and its drain over), under _sendLock
_layoutApplied, _layoutStartCc, _layoutCcCount, _layoutStartNote, _layoutNoteCount bool, int The MIDI bar settings CcNumbers and NoteNumbers were last built from, for ApplyLayout's change test (MidiVirtualController.cs:543-544)

Configurable Properties

Property Type Default Description
CcNumbers int[] {1, 2, 3, 4, 5, 6} MIDI CC numbers for each CC slot
NoteNumbers int[] {60, 61, ..., 70} MIDI note numbers for each note slot (11 notes)
Velocity byte 127 Note-on velocity for button presses
OutputPort string "" The port the legacy API sends to, by the name the slot's picker saved (MidiSlotConfig.OutputPort). The Windows MIDI Services backends ignore it

ApplyLayout sets the first three from the slot's MIDI bar: CreateMidiController calls it before Connect(), and Pass 3 of Step 5 calls it before every submit. The counts determine array sizes for change detection.

Auto-Mapping

When a recognized gamepad is assigned to a MIDI slot, PadForge auto-maps: - 6 axes to CC slots 0–5 (LX, LY, LT, RX, RY, RT -> MidiCC0–MidiCC5) - 11 buttons to Note slots 0–10 (A, B, X, Y, LB, RB, Back, Start, LS, RS, Guide -> MidiNote0–MidiNote10)

Same gamepad detection as the HM-backed slots (CapType == InputDeviceType.Gamepad), plus a Bliss-Box port read raw, whose controller's placement stands in for SDL's layout. Other devices get no auto-mapping.

Properties

Property Type Description
Type VirtualControllerType Always VirtualControllerType.Midi
IsConnected bool Read from _connected
FeedbackPadIndex int Slot index for feedback routing (unused. MIDI has no rumble)
ApiKind MidiApiKind The API the endpoint was made with, set when ConnectCore commits. Step 5 rebuilds the slot when the probe settles on another API, as after the runtime install
CreatedGeneration int The backend generation the endpoint was made in. Step 5 rebuilds the slot once it falls behind Generation, since the backend or the service the endpoint talks to is gone
EndpointLost bool True once a send showed the port itself is gone, which only the legacy API reports: a handle whose device left answers every later message with an error, even after the device is back under the same name. Step 5 rebuilds the slot, which opens the port again

Constructor

public MidiVirtualController(int padIndex, int channel, int instanceNum)

Stores pad index, clamps channel to 0–15, stores 1-based instance number.

Connect()

Returns early if already connected. Connect() is a bounded wrapper: ConnectCore runs on a Task.Run and the caller waits on a ManualResetEventSlim for ConnectTimeoutMs (15 seconds). On timeout it bumps _creationGen (so a late completion tears down its own locals instead of committing them), demotes the registry claim to abandoned, schedules a MidiEndpointJanitor sweep, and on the first attempt asks RestartService("a MIDI create hung", legacyCall) for a service restart and retries once. A refused session gets the same restart and retry: MidiSessionUnavailableException on the first attempt runs RestartService("the service refused a MIDI session", legacyCall: false). The failed attempt has already released its endpoint claim. Disconnect() carries the same bounded shape around DisconnectCore (8 seconds).

RestartService restarts midisrv for a call that hung or a session the service refused: a create, MIDI input, a port listing, and the release before a runtime uninstall. The availability probe asks through its own recovery (RecoverFromHungProbe). Both go through MidiServiceRecovery.TryRestart, which allows one restart per 120-second cooldown. When the old instance ended, running again or not, RestartService resets the cached availability under _availLock before the restart reads as over, and starts a new generation after it. It answers Refused inside another restart's cooldown, and where no restart can reach the call (ServiceRestartCanHelp): on Windows before 24H2, in Legacy API mode, for a legacy call in Hybrid mode, and on a PC that has no MIDI service (MidiServiceRecovery.ServiceExists). Connect() makes its second attempt only after a restart that left the service running, and only once a fresh IsAvailable() returns true. A false there throws TimeoutException. After any other outcome of the restart, a refused session's exception reaches the caller unchanged, and a create that timed out throws TimeoutException, or under the legacy API MidiPortException with MidiPortProblem.DidNotOpen.

ConnectCore initialization sequence:

  1. Registers the id from BuildUniqueEndpointId ("PADFORGE_MIDI_{instanceNum}_{12 hex}", unique per creation so a stranded endpoint can never collide with a fresh one) as creating, before the service can materialize the endpoint.
  2. Under the legacy API, calls MidiBackendLegacy.OpenOutputPort(OutputPort): the saved name resolves to the port's current WinMM index, and midiOutOpen opens it with CALLBACK_NULL (RtMidi MidiOutWinMM::openPort). It throws MidiPortException, an InvalidOperationException that carries a MidiPortProblem: NotPicked when no port is picked, InUse when the port is already open elsewhere (MMSYSERR_ALLOCATED), with a text that names no holder, DidNotOpen for any other failed open, and MidiPortNotConnectedException, a subclass with NotConnected, when the port is not listed. Step 5 retries a slot whose port was missing once a port listing shows the port again (Input Pipeline). Otherwise calls _backend.CreateVirtualEndpoint("PadForge MIDI {instanceNum}", id, padIndex), or throws InvalidOperationException when no backend is started. Both Windows MIDI Services backends run the same steps under their own namespaces:
    1. MidiDeclaredEndpointInfo with the name, ProductInstanceId = the id, MIDI 1.0 protocol, static function blocks.
    2. MidiVirtualDeviceCreationConfig with the slot description, and one MidiFunctionBlock (bidirectional, Group 0, RepresentsMidi10Connection = YesBandwidthUnrestricted).
    3. MidiSession.Create(deviceName). Throws MidiSessionUnavailableException if null, which both APIs return when the service is unavailable or not running (MidiSession::Create in microsoft/MIDI).
    4. MidiVirtualDeviceManager.CreateVirtualDevice(config), then SuppressHandledMessages = true.
    5. A MidiEndpointConnection to the device's endpoint ID.
    6. The virtual device as message processing plugin. The in-box API reports the add, and its backend throws on anything but MidiMessageProcessingPluginAddResult.Succeeded, as Microsoft's virtual device sample does. The App SDK runtime's add returns nothing.
    7. Open(). Throws if false.
  3. Commits _endpoint, ApiKind and CreatedGeneration (read before the backend, so a reset between the two reads costs a rebuild instead of stamping a torn-down backend's endpoint as current), sets _connected = true, marks the id ready, initializes _lastCcValues (filled with 64), _lastNotes, _ccSent and the two resend arrays, and starts the send worker (StartSending), only while this attempt is still the current generation.

Error handling: a backend that fails partway disconnects and disposes what it built before re-throwing. ConnectCore then drops the registry claim and schedules a janitor sweep (ReleaseEndpointClaim). A superseded attempt tears its finished endpoint down through TeardownLocalCreation without touching the instance fields.

Status lines: Step 5 words every failed MIDI create for the status bar in the UI language (RaiseCreateError), naming the slot the way its card does, "Virtual Controller" and the shown number (SlotLabel). It remembers the line for the slot and takes it back once the slot starts or is reconfigured, disabled or deleted (ResolveMidiCreateError). In the lines below, {0} is that label, {1} the port's name and {2} the other slot's label.

Failure Strings.resx key Line
MidiPortProblem.NotPicked Status_MidiPortNotPicked_Format {0} has no Output Port. Pick one on its page.
MidiPortProblem.NotConnected Status_MidiPortNotConnected_Format The Output Port “{1}” of {0} is not connected. The slot starts once the port is back.
MidiPortProblem.InUse Status_MidiPortInUse_Format The Output Port “{1}” of {0} is already in use.
MidiPortProblem.InUse, with another created, enabled MIDI slot set to the same port (OtherMidiSlotOnPort) Status_MidiPortShared_Format {0} and {2} are set to the same Output Port “{1}.” Pick another port for one of them.
MidiPortProblem.DidNotOpen Status_MidiPortDidNotOpen_Format The Output Port “{1}” of {0} did not open.
Any other failure while a Windows MIDI Services API is the one in use Status_MidiCreateFailed_Format {0} could not start because Windows MIDI Services did not create its port.
Any other failure otherwise, and a create that found no MIDI API started Status_MidiNotRunning_Format {0} could not start because MIDI is not running. The Windows MIDI Services card in Settings says why.

Beside the retries every slot type has (a slot toggle, a type or profile change, its devices coming back), a failed MIDI slot tries again when its port changes, when the probe settles on another API or in a newer generation, when its legacy port comes back, and, after a shared port, once no other MIDI slot is set to that port (CreateFailedClearReason).

Disconnect()

Returns early if not connected. Sequence:

  1. Sets _connected = false immediately, so no later submit queues anything.
  2. Queues what the receiver is still owed first (QueueOwed(teardown: true)), then a Note Off for each held note, to prevent stuck notes in DAWs, and an off (value 0) for each switch controller (CC 64–69, sustain to hold 2) PadForge left on, each on the channel and number it went out on (ReleaseSwitchControllers). A sustain left down holds every note on its channel, Note Offs included.
  3. Nulls _lastNotes, then StopSending(SendDrainMs): the send worker sends what is queued and ends, and the teardown waits up to 3 s for it. During that drain the worker sends a refused release again itself, a millisecond apart, until the port takes it, the port is gone or the drain is over. Then what still waits is dropped.
  4. IMidiVirtualEndpoint.DisconnectConnection(), then nulls _endpoint.
  5. IMidiVirtualEndpoint.CloseSession().

Whatever the service does, the finally drops the registry claim and schedules a janitor sweep. Under the legacy API, step 4 does nothing and step 5 is midiOutClose without midiOutReset, which would send All Notes Off and Reset All Controllers on all 16 channels (RtMidi issue #222. PortMidi and NAudio close without it too). Step 2 has already released every note this controller held.

SubmitGamepadState(Gamepad gp)

public void SubmitGamepadState(Gamepad gp)

Legacy path. Not used for dynamic MIDI. Kept as a no-op for IVirtualController interface compliance.

ApplyLayout(int channel, int startCc, int ccCount, int startNote, int noteCount, byte velocity)

MidiVirtualController.cs:577. Takes the slot's MIDI bar settings: channel 0–15, the first CC and note numbers with their counts, and the velocity. CreateMidiController calls it before Connect(), and Pass 3 calls it before every submit, the way the Keyboard + Mouse slot takes its SOCD settings, so an edit reaches a running slot without closing its port. It clamps the channel to 0–15 and each run to 0–127 again, because the bar sets a start and then re-clamps its count, and a read between the two sees the new start with the old count. Unchanged settings return after the compares and allocate nothing.

On a change, a held note whose channel and number survive stays held. Every other held note gets its Note Off on the channel and number it went out on, since a Note Off ends only the Note On with the same channel and key. A CC whose channel and number survive keeps its last sent value, and the rest start again at 64, as at connect. A switch controller (CC 64–69) that PadForge left on and whose channel or number does not survive gets its off on the old pair first, since a sustain left down there holds every note on that channel. The next submit presses held buttons on their new notes and sends each moved CC that is off center. What the receiver is still owed stays owed through the edit, and a release the edit queued that the port refuses is sent again. A new velocity applies from the next Note On, and a velocity of 0 sends 1, since a MIDI 1.0 Note On with velocity 0 is a Note Off. Like DisconnectCore, it sends no All Notes Off (CC 123), which on a legacy port another program shares would end that program's notes too.

SubmitMidiRawState(MidiRawState state)

Queues MIDI messages from MidiRawState for the send worker. Returns immediately if not connected. Only queues on value change, plus what the receiver is still owed after the API refused it.

CC messages: Iterates min(state.CcValues.Length, _lastCcValues.Length, CcNumbers.Length). A changed CC value goes to QueueSend as a Control Change. Triple-min guards against mid-stream config changes.

Note messages: Same triple-min pattern. A changed note goes to QueueSend as a Note On at Velocity or as a Note Off. A note the queue has no room for stays uncommitted, and the next submit tries it again.

Resend: the worker records what a refused message leaves owed (Refused, Owe) on the channel and number it went out on, and the next submit sends it again (QueueOwed), so a lost Note Off does not leave a note sounding. A controller the layout owns goes out at its current value. A Note Off goes out unless the slot holds that note down again. On a channel and number the slot has left, only a switch controller's release is still sent. Anything queued for a channel and number settles what is owed there. A bar edit drops nothing owed, nothing is owed to a port that is gone, and a refused Note On is never sent again, since a duplicate would retrigger the note.

Thread safety: the polling thread never waits on a send. The worker's SendNow reads _endpoint into a local before the null-check and the send, preventing races with Disconnect().

MidiRawState

// In PadForge.Engine/Common/GamepadTypes.cs
public struct MidiRawState
{
    public byte[] CcValues;   // CC values 0–127 per CC slot
    public bool[] Notes;      // Note on/off per note slot

    public static MidiRawState Create(int ccCount, int noteCount);
}

Dynamic-sized state struct. Create() allocates zeroed arrays of the specified sizes. Clear() resets CC values to 64 (center) and notes to false. Connect() seeds the controller's own _lastCcValues to 64.

RegisterFeedbackCallback(int padIndex, Vibration[] vibrationStates)

No-op. MIDI has no rumble/force feedback.

Dispose()

Guarded by _disposed. Calls Disconnect().

MIDI Message Helpers

The polling thread queues each message, and one worker per controller (SendLoop, on a thread named MidiSend {instanceNum}) sends them in order, so a port that takes messages slowly never holds the polling thread. SendNow hands each message to IMidiVirtualEndpoint.Send(Midi1Status, channel, data1, data2). A Windows MIDI Services backend packs it as a MIDI 1.0 UMP (Universal MIDI Packet) word on group 0 (MidiUmp.Midi1Word, the word MidiMessageBuilder.BuildMidi1ChannelVoiceMessage() packs) and sends it with SendSingleMessageWords(), with no WinRT object per message. The legacy backend packs it for midiOutShortMsg, status byte low and the two data bytes above it (MidiBackendLegacy.PackShortMessage, as RtMidi's MidiOutWinMM::sendMessage packs it). Send answers whether the API took the message. A throw counts as a refusal of that message, never as a fault of the worker.

Member Description
QueueSend(status, data1, data2, ...) Queues one message on the configured channel. A Control Change waits as one entry per channel and controller number: a newer value takes its place there, and the worker reads the value as it sends, so a slow port gets the newest value next. A Note On or a Note Off is queued in order and never replaced
SendQueueLimit 512, the most note messages that wait. A press or release that finds it reached is not queued, stays uncommitted, and is tried again on the next submit. Controller values never count against it, and the releases of a teardown or a layout edit are queued past it
SendLoop(), SendNow(item) The worker: takes the next message, sends it, and records what a refused CC or Note Off leaves owed (Refused)
StartSending(), StopSending(drainMs) Start the worker at connect, and ask it to send what is queued and end. DisconnectCore waits up to SendDrainMs (3 000 ms) for it

Static Availability Check

IsAvailable() -> bool

Thread-safe. The answer is cached in _probeState, written under _availLock and read without it. Returns false at once while SuppressForUninstall holds the runtime down (_runtimeSuppressed), while an earlier ask has given up on a probe that has not answered (_probeTimedOut, where each ask also keeps RecoverFromHungProbe going), and while a service restart PadForge performs is in flight (MidiServiceRecovery.RestartInFlight), since a Windows MIDI Services API that refuses inside a restart would leave the legacy API in its place. Otherwise the probe runs on Task.Run (StartProbe) and the ask waits ProbeTimeoutMs (10 seconds) for it (AwaitProbe). A probe still running then becomes the hung probe the recovery watches (s_hungProbe), RecoverFromHungProbe starts off the calling thread, and the ask returns false, so later creates fail fast instead of waiting again.

RecoverFromHungProbe watches the probe an ask gave up on until MIDI has an answer, and parks no thread on it. A probe that is slow, not hung, answers by itself, and that answer is kept whenever it comes (MIDIRECOVER a probe answered after its bound: MIDI available on {ActiveApi}). So nothing is restarted while the probe can still be a slow one: the restart, MidiServiceRecovery.TryRestart("the availability probe hung"), comes for a probe still pending at the create path's bound (ConnectTimeoutMs, 15 seconds from the probe's start, ProbeWatchMs). From there the service is restarted once per 120-second cooldown until a probe has an answer, whether a restart was refused inside another restart's cooldown, failed, or left the service still hung. After a restart the recovery waits up to HungProbeReturnMs for the hung probe to return. A probe the service was restarted under keeps no answer (it compares MidiServiceRecovery.RestartsBegun before its starts and before it commits), so the recovery resets (ResetAfterHungProbe), which starts a new generation, and runs the probe again, logging MIDIRECOVER the probe ran again: MIDI available on {ActiveApi}. A probe that hangs in a classic MIDI driver, where no service restart can help (ServiceRestartCanHelp), is waited for instead, and its answer is kept when it comes. While an uninstall holds the runtime down the recovery probes nothing. Before this, a hung probe left the Settings card reading Not Running and every MIDI slot failing until a runtime was installed or removed.

  1. Fast path: if _probeState is not ProbeNotRun, returns the cached answer.
  2. Under lock (IsAvailableCore): TryStart(s_backendFactory, out refused), skipped while an uninstall holds Windows MIDI Services from starting (WmsStartHeld), then TryStart(s_legacyFactory, ...) when that left no backend. In production CreateBackend asks MidiApiSelection.Choose(OsBuild, ProbeInBoxActivation, IsAppSdkRuntimeInstalled, out inBoxFailure) and returns a MidiBackendInBox, a MidiBackendAppSdk, or null. An in-box API that Windows registers but that fails to activate is logged and kept in InBoxActivationFailure for the Settings card, and the legacy API runs in its place. CreateLegacyBackend returns a MidiBackendLegacy.
  3. TryStart calls Start() on the backend it creates. The in-box backend calls the static MidiApi.EnsureServiceAvailable(), which returns false in Legacy API mode. The runtime's backend creates its MidiDesktopAppSdkInitializer, then calls InitializeSdkRuntime() and EnsureServiceAvailable(), disposing the initializer when either fails. The legacy backend counts the WinMM ports and returns true. A start that returns false or throws stops that backend, which releases an initializer a half-finished start may hold, and yields null.
  4. Keeps the started backend in _backend, caches the answer in _probeState, and records midisrv's process id (s_servicePid) when the backend runs through the service. A probe a service restart began under keeps nothing and stops what it started.

A probe that hangs in the first backend never reaches the legacy one: the 10-second bound gives up on both, and on the new MIDI stack WinMM routes through the same service anyway.

When a Windows MIDI Services backend did not start and the probe settled on the legacy API (s_wmsRefused), RecheckRefusedApi starts a fresh Windows MIDI Services backend beside the one in use (TrialStartsWindowsMidiServices), first after RefusalRecheckMs (10 seconds) and then once per recovery cooldown. Once one starts, it calls ResetAvailability(), and the probe runs again and takes it. Nothing there restarts the service, and in Legacy API mode nothing is checked.

CheckServiceInstance, called from the MIDI input sweep's enumeration worker, starts a new generation when midisrv is no longer the instance the probe found: restarted from outside PadForge, or by the service manager after a crash. It waits for an instance that runs, or for ServiceDownResetMs (30 seconds) of a service that stays down, and leaves a restart PadForge performs to that restart's own reset.

ActiveApi reports the started backend's kind after a successful probe, MidiApiKind.Legacy included, and MidiApiKind.None otherwise. ProbeFailed is true after a probe that started nothing, and while an ask has given up on a probe that has not answered. The Settings card reads both through MidiApiSelection.ForCard. NotRunningReason picks the line under Not Running: the service, a classic MIDI driver (ProbeHungInDriver), or an uninstall in flight.

ResetAvailability()

Resets cached availability so IsAvailable() re-evaluates. Clears _probeTimedOut, stops and drops _backend, sets _probeState back to ProbeNotRun, and bumps Generation. It leaves the uninstall latch (_runtimeSuppressed) up, since a probe then could load the files the uninstaller is removing. Only the end of the release that set the latch lifts it: EndUninstallHold, which the uninstall reaches through MidiRuntimeSwitch.EndUninstall once its uninstaller has exited. The runtime's install calls ResetAvailability() through InputService.SwitchMidiApi, and RecheckRefusedApi calls it once Windows MIDI Services starts after all. The same reset (ResetLocked) and generation bump run in every service restart PadForge performs (RestartService), in the hung-probe recovery, in CheckServiceInstance, and at the end of an uninstall's release.

A controller made in an older generation talks to a backend or a service that is gone. Step 5 rebuilds its slot (CreatedGeneration behind Generation), and the next MIDI input sweep closes every input and the shared session and opens them again on the current backend (MIDI Input Internals). A MIDI slot whose create failed gets a new attempt in a newer generation too.

Shutdown(bool skipDispose = false)

public static void Shutdown(bool skipDispose = false)

Stops and drops the backend. Call on application exit, through ShutdownForExit, which runs MidiInputRuntime.Shutdown() and then this on a worker and waits at most 8 seconds for them. The in-box and legacy backends hold nothing to release: each legacy port closes with the controller or input device that opened it.

skipDispose: When true, the runtime's backend drops its initializer without Dispose(). No production caller passes it. Dispose() makes no native call, because Microsoft's projection has the native Shutdown commented out of ShutdownSdkRuntime (rc-3 and rc-4 MidiDesktopAppSdkInitializer.cs), so disposing is as safe while the service goes away as at any other time. Either way it sets _probeState back to ProbeNotRun.

The in-app uninstall of the runtime goes through MidiRuntimeSwitch.RunUninstall, and what it holds follows the API in use (TryHoldWithoutRelease). Under the in-box API it holds nothing. Under the legacy API it takes a start hold: MIDI keeps running on its WinMM ports, and no Windows MIDI Services backend starts, by a probe or by RecheckRefusedApi, until the uninstaller exits. Otherwise it closes MIDI input and calls SuppressForUninstall(), which sets _runtimeSuppressed and stops the backend. That drops the runtime's initializer and, with MIDI input's shutdown before it, its sessions. It does not unload the runtime's DLLs, which stay mapped for the life of the process. The uninstall reaches its files because the window declines Restart Manager's request to close PadForge (MainWindow.OnQueryEndSession) and Windows Installer schedules held files for removal. Availability stays false until the release ends (EndUninstallHold), which the uninstall does once its uninstaller has exited, never before. One release is in flight at a time, and a release that misses its 60-second bound (MidiRuntimeSwitch.ReleaseTimeoutMs) keeps the uninstaller from starting and undoes itself.

KeyboardMouseVirtualController

Namespace: PadForge.Common.Input Visibility: internal sealed No driver required on Windows input. A half set to a keyboard or mouse model needs HIDMaestro. Max instances: 16 (MaxPads)

Translates KbmRawState into keyboard and mouse input. Maps controller inputs to key presses, mouse movement, clicks, and scroll. Each half sends through Win32 SendInput, straight to the Windows input queue with no virtual device, or through a virtual HID keyboard or mouse HIDMaestro makes from the profile the slot picked. See Virtual keyboards and mice.

Fields

Field Type Description
_connected bool Connection state
_disposed bool Dispose guard
_padIndex int The slot, for the devices' identity keys and the sender threads' names
_ctx HMContext The HIDMaestro context the virtual devices are made in, null when both halves use Windows input
_keyboardProfile, _mouseProfile HMProfile The model each half sends through, null for Windows input
_hidKeyboard, _hidMouse KbmHidKeyboard, KbmHidMouse The senders while connected, null on Windows input
_prevKeys0..3 ulong Previous key states for change detection (4 x 64 bits = 256 VK codes)
_prevMouseButtons byte Previous mouse button state for change detection
_mxAccumulator, _myAccumulator float Sub-pixel residue for the stick-deflection mouse lane. Fractional pixels accumulate across frames instead of truncating to 0.
_scrollAccumulator, _scrollAccumulatorH float Sub-notch residue for vertical and horizontal scroll.
_gxAccumulator, _gyAccumulator float Gyro lane's own sub-count remainder. Separate from the deflection lane's so a stick and a gyro on the same axis do not trade fractional motion, and so the direction-flip reset only discards gyro's own carry.
_txAccumulator, _tyAccumulator float Touchpad lane's sub-count remainder, the gyro pair's twin.
_sxAccumulator, _syAccumulator float Stick trackball coast's own remainder pair (issue #291). A fourth source on the same axis gets its own accumulator so lanes never trade fractional motion.
_lastAbsCursorX, _lastAbsCursorY int Last absolute-pointer pixel written, so the per-poll SetCursorPos is skipped when the target hasn't moved. int.MinValue = no write yet / pointer released, which forces the next valid frame to write.
_lastSubmitTimestamp, _submitDt long, float Wall-clock delta between SubmitKbmState calls (Stopwatch ticks), so the cursor and scroll rate lanes are poll-rate-independent.
_socd SocdCleaner SOCD cleaner (discussion #205, Snap Tap). Rewrites the logical key bitset before change detection. No-op while mode is Off.
_appliedSocdMode, _appliedSocdPairs string Last-applied SOCD config strings. Reference-compared in ApplySocdConfig for a two-compare steady-state fast path.

Rate Constants and Helpers

Cursor and scroll speeds are time-based rates, not per-poll amounts. The old constants (15 px per poll, 3 wheel notches per poll) made speed a function of the polling-interval setting: at the default 1 ms interval, full deflection meant 15,000 px/s. The replacement is deflection x full-scale x wall-clock dt, which is poll-rate-independent.

Constant Value Description
MouseFullScalePxPerSec 1200f Cursor speed at full axis deflection, pixels per second. The proven desktop-cursor reference is DS4Windows' stick-as-mouse: velocity x timeDelta with a default full-scale of sensitivity 25 x MOUSESPEEDFACTOR 48 = 1,200 px/s (DS4Windows Mapping.cs:829, :5437). The per-stick KBM speed knob upstream scales from here.
ScrollFullScaleNotchesPerSec 100f / 3f Scroll speed at full deflection, ~33 wheel notches per second. Reference is DS4Windows' stick-wheel: a 10 ms cadence with full deflection counting one notch per three runs.
Helper Signature Contract
ClampSubmitDt float ClampSubmitDt(double seconds) Seconds credited to one submit: never negative, capped at 50 ms so a stall (debugger, suspend) resumes gently instead of spending the whole gap as one giant delta (KeyboardMouseVirtualController.cs:165).
MouseStickPixels float MouseStickPixels(short deflection, float dtSeconds) deflection / 32767 * MouseFullScalePxPerSec * dt. Pure, so the rate contract is directly testable (:172).
ScrollStickNotches float ScrollStickNotches(short deflection, float dtSeconds) The scroll twin, in wheel notches (:177).

Properties

Property Type Description
Type VirtualControllerType Always VirtualControllerType.KeyboardMouse
IsConnected bool Read from _connected
KeyboardDeviceId, MouseDeviceId string The profile each half sends through, empty for Windows input. Step 5 compares them with the slot's picks
HasHidDevices bool True when either half has a model, whose removal waits on Windows and so never runs on the polling thread
KeyboardLeds HMKeyboardLeds? The lock lights Windows last set on the virtual keyboard, null without one
FeedbackPadIndex int Slot index (unused. KBM has no rumble)

Constructor

public KeyboardMouseVirtualController(int padIndex)
public KeyboardMouseVirtualController(int padIndex, HMContext ctx, HMProfile keyboardProfile, HMProfile mouseProfile)

The first is Windows input for both halves and passes no context and no profiles to the second, which stores the slot, the context and the two models (KeyboardMouseVirtualController.cs:193-211). A null profile is Windows input for that half. Nothing is made until Connect().

Connect()

Returns early if connected. Makes the virtual devices first, when a half has a model: one device for both halves when they name the same profile (SharedKbmHidSink, two users), else one per half, each wrapped in its sender. A half that cannot be made throws, so the create fails as any HIDMaestro controller's does, and the slot does not fall back to Windows input it was not set to. Then sets _connected = true, resets key/button tracking to zero, zeroes _lastSubmitTimestamp (fresh time base: the first submit after a reconnect credits zero seconds instead of the idle gap), and calls _socd.Reset(). On Windows input no device is made.

Disconnect()

Returns early if not connected. Sets _connected = false, calls ReleaseAll() and DisposeHidDevices(), which removes the virtual devices after each sends its releases, then zeroes all ten motion accumulators (_mx/_my, _scroll/_scrollH, _gx/_gy, _tx/_ty, _sx/_sy, :318-329): a stale sub-count carry must not survive a reconnect and spend itself on the first new poll.

ReleaseAll(): Sends key-up for all held keys and button-up for all held mouse buttons (a release-phase ProcessKeyWord pass with current = 0 emits releases for every set bit). Resets tracking to zero. Prevents stuck keys/buttons on disconnect. With a virtual keyboard or mouse the releases go through it (KbmHidKeyboard.ReleaseAll, KbmHidMouse.SetButtons(0)).

ApplySocdConfig(string mode, string pairs)

KeyboardMouseVirtualController.cs:269. Applies the slot's SOCD (Snap Tap, discussion #205) config. Called from the poll loop before each submit. The UI thread swaps whole config strings atomically, so two ReferenceEquals compares detect an edit and keep the steady-state cost at two compares. On change it forwards mode / pairs to _socd.Configure.

Dispose()

Guarded by _disposed. Calls Disconnect().

SubmitGamepadState(Gamepad gp)

No-op. KBM uses SubmitKbmState() instead. Required by the IVirtualController interface.

SubmitKbmState(KbmRawState raw)

Primary output method. Measures the wall-clock dt first (before the connected check, so the time base stays warm), then returns if not connected. Processes SOCD cleaning, then nine input lanes per frame.

dt measurement (:343-350): Stopwatch.GetTimestamp() delta since the previous submit, run through ClampSubmitDt (never negative, 50 ms cap). Measured here rather than passed in, so the contract cannot drift when a caller forgets, and the first submit credits zero.

0. SOCD cleaning (Snap Tap, discussion #205):

_socd.Apply(ref raw.Keys0, ref raw.Keys1, ref raw.Keys2, ref raw.Keys3) rewrites the logical bitset before change detection and before the _prevKeys assignment, so a suppressed loser emits its key-up and a later release of the winner lets the still-held loser through as a fresh key-down. No-op while mode is Off.

1. Keyboard keys (two global phases, change detection via XOR):

ProcessKeyWord(ulong current, ulong previous, int baseVk, bool releases). The frame runs a full release pass over all four VK words, then a full press pass:

ProcessKeyWord(raw.Keys0, _prevKeys0, 0,   releases: true);
ProcessKeyWord(raw.Keys1, _prevKeys1, 64,  releases: true);
ProcessKeyWord(raw.Keys2, _prevKeys2, 128, releases: true);
ProcessKeyWord(raw.Keys3, _prevKeys3, 192, releases: true);
ProcessKeyWord(raw.Keys0, _prevKeys0, 0,   releases: false);
// ...press pass over words 1..3...

Each phase XORs current ^ previous and, per bit, sends only the bits belonging to that phase (changed & ~current for releases, changed & current for presses). Release-before-press must be global across all four words, not per-word, or a cross-word SOCD pair (arrow + letter) still exposed both directions held between the two SendInput calls when the winner's word processed first. Only changed bits generate SendInput calls. Critical at 1000 Hz with 256 VK codes. With a virtual keyboard the four words go to KbmHidKeyboard.Submit instead: one report carries every key, so an SOCD swap's release and press reach Windows together.

2. Mouse buttons (change detection):

Compares raw.MouseButtons against _prevMouseButtons via XOR.

Bit Button Down Flag Up Flag
0 Left (LMB) MOUSEEVENTF_LEFTDOWN MOUSEEVENTF_LEFTUP
1 Right (RMB) MOUSEEVENTF_RIGHTDOWN MOUSEEVENTF_RIGHTUP
2 Middle (MMB) MOUSEEVENTF_MIDDLEDOWN MOUSEEVENTF_MIDDLEUP
3 XButton1 MOUSEEVENTF_XDOWN MOUSEEVENTF_XUP
4 XButton2 MOUSEEVENTF_XDOWN MOUSEEVENTF_XUP

XButton1/XButton2 use mouseData field to specify which extra button. With a virtual mouse, KbmHidMouse.SetButtons takes the button byte instead.

3. Mouse movement (stick deflection, rate-based, routed through the injector thread):

_mxAccumulator += MouseStickPixels(raw.MouseDeltaX, _submitDt);
_myAccumulator += -MouseStickPixels(raw.MouseDeltaY, _submitDt);  // Y inverted
int dx = (int)_mxAccumulator; int dy = (int)_myAccumulator;
_mxAccumulator -= dx; _myAccumulator -= dy;
if (dx != 0 || dy != 0) Move(dx, dy);

Move hands the counts to the virtual mouse when the slot has one (KbmHidMouse.AddMotion) and to the injector thread otherwise. Every motion lane below moves through it.

Never a SendInput on the poll thread. Injected mouse movement traverses every process's low-level mouse hook chain synchronously, and a stick at full deflection crosses the accumulator nearly every tick. The macro mouse path measured that exact per-poll-SendInput mechanism collapsing the loop to ~200 Hz, so this lane rides the same InputManager injector thread. The integer part goes to AccumulateMouseMoveInput, the fractional residue stays in the accumulator. Y negated (raw up = screen down). Deadzone already applied in Step 3.

4. Gyro exact counts (:418-442):

MouseGyroX/Y arrive already in calibrated mouse counts and already time-scaled by the engine, so this lane does NOT run through the cursor rate above (that would re-apply a spend the engine has just removed). Its own accumulators carry the sub-count remainder, and the remainder is dropped when the direction reverses or the axis reads zero, so a flick back the other way does not first spend sub-count motion still pointing the old way (DS4Windows MouseCursor.cs hRemainder / vRemainder sign check). BOTH axes negate into screen space: SDL's gyro frame is nose-relative (positive yaw is nose LEFT, positive pitch is nose UP), the opposite of screen space on both counts.

5. Touchpad exact counts (:444-461):

The gyro lane's twin (MouseTouchX/Y), with NEITHER axis negated. A finger on a pad is already screen-aligned: SDL reports raw_y = 0 at the top, so a finger moving down yields a positive delta and screen-Y is positive-down too. Net parity with the old deflection lane is preserved (that path negated twice and arrived at the same sign this arrives at with none).

6. Stick trackball coast exact counts (issue #291, :463-474):

MouseStickCoastX/Y is the fling a released mouse stick keeps traveling on. Its own accumulator pair, stepped through the same StepExactCounts helper the gyro and touchpad lanes use. Y negates into screen space exactly as the deflection lane's spend does, because the coast launched from that lane.

7. Flick stick exact counts (issue #225, :483-484):

raw.MouseFlickX forwards to the injector 1:1. NOT scaled by the cursor rate and NOT run through an accumulator: the engine tick already calibrated the value in mouse counts (counts-per-360 on the source) and carries its own sub-count residual. Scaling here would break the flick = exact camera angle contract.

8. Absolute pointer (Wii IR pointing, issue #146):

When raw.MouseAbsValid and CursorControlService.TryGetPrimarySize(out w, out h), the aim (MouseAbsX / MouseAbsY, normalized [-1..+1]) maps over the primary screen and positions the OS cursor via SetCursorPos (Touchmote MouseSimulator idiom). A mixed mapping (IR on one axis, a stick on the other) drives only one absolute coordinate. When MouseAbsXValid != MouseAbsYValid, the un-driven coordinate is read back from GetCursorPos so it keeps its integrated position instead of recentering. On sight loss the cursor holds its last position.

The write is change-gated (:513-526): SetCursorPos crosses every WH_MOUSE_LL hook in the system, so a resting finger firing it every poll at 1 kHz is the same syscall-storm class as the SendInput poll-rate regression. Only when the target pixel actually moved does the call fire, tracked in _lastAbsCursorX/Y. When the pointer is released or absent, the cache resets to int.MinValue so the next engagement always repositions.

9. Mouse scroll (vertical + horizontal, rate-based, injector-routed):

_scrollAccumulator += ScrollStickNotches(raw.ScrollDelta, _submitDt);
int scroll = (int)_scrollAccumulator; _scrollAccumulator -= scroll;
if (scroll != 0) InputManager.AccumulateMouseScrollInput(scroll * 120);  // 120 = WHEEL_DELTA

A virtual mouse takes whole detents instead (KbmHidMouse.AddWheel, AddPan), and drops a wheel or a tilt the model lacks.

Horizontal scroll (issue #154, the office-mouse tilt wheel) uses the same idiom on raw.ScrollDeltaH, sent via InputManager.AccumulateMouseScrollHInput(scrollH * 120) (positive = scroll right, matching MOUSEEVENTF_HWHEEL).

RegisterFeedbackCallback(int padIndex, Vibration[] vibrationStates)

No-op. Keyboard/mouse has no rumble feedback.

KbmRawState (from Engine)

public struct KbmRawState
{
    public ulong Keys0, Keys1, Keys2, Keys3;   // 256 VK codes packed into 4 x 64-bit words
    public short MouseDeltaX;                    // Mouse X delta (signed, post-deadzone)
    public short MouseDeltaY;                    // Mouse Y delta (signed, post-deadzone)
    public short ScrollDelta;                    // Scroll delta (positive = up, post-deadzone)
    public byte MouseButtons;                    // Bit 0=LMB, 1=RMB, 2=MMB, 3=X1, 4=X2
    public short PreDzMouseDeltaX;               // Mouse X before deadzone (for UI preview only)
    public short PreDzMouseDeltaY;               // Mouse Y before deadzone (for UI preview only)
    public short PreDzScrollDelta;               // Scroll before deadzone (for UI preview only)
    public short ScrollDeltaH;                   // Horizontal scroll, positive = right (issue #154)
    public short PreDzScrollDeltaH;              // Horizontal scroll before deadzone (UI preview)
    public float MouseAbsX, MouseAbsY;           // Absolute pointer aim, [-1..+1] (issue #146, Wii IR)
    public bool MouseAbsValid;                   // True while the camera sees the sensor bar (any-axis OR)
    public bool MouseAbsXValid, MouseAbsYValid;  // Per-axis validity for mixed absolute/delta mappings
    public int MouseFlickX;                      // Flick-stick exact counts, forwarded 1:1 (issue #225)
    public float MouseGyroX, MouseGyroY;         // Gyro mouse motion in exact counts (fractional)
    public float MouseTouchX, MouseTouchY;       // Touchpad mouse motion in exact counts (fractional)
    public float MouseStickCoastX, MouseStickCoastY; // Stick trackball coast in exact counts (issue #291)

    public bool GetKey(byte vk);                 // Read bit for VK code
    public void SetKey(byte vk, bool pressed);   // Set bit for VK code
    public bool GetMouseButton(int index);       // Read bit 0-4
    public void SetMouseButton(int index, bool pressed);
    public void Clear();                         // Zero all fields
    public static KbmRawState Combine(KbmRawState a, KbmRawState b);
}

Combine() merges two states (used when multiple devices map to one KBM slot): keys and mouse buttons OR'd, deltas and flick counts take the largest absolute magnitude (every device pass in a frame replays the same per-row flick counts, so max-abs merges duplicates without double-counting), gyro, touchpad, and stick-coast counts SUM (two gyros aimed at one slot each contribute their real motion, the way two hands on one controller would), and the absolute pointer resolves per axis with the tracking side winning (GamepadTypes.cs:389-433).

Win32 SendInput P/Invoke

[DllImport("user32.dll", SetLastError = true)]
private static extern uint SendInput(uint nInputs, INPUT[] pInputs, int cbSize);

[DllImport("user32.dll")]
private static extern uint MapVirtualKeyW(uint uCode, uint uMapType);

// Absolute cursor positioning for the Wii IR pointer (issue #146),
// the same calls Touchmote's MouseSimulator uses.
[DllImport("user32.dll")]
private static extern bool SetCursorPos(int x, int y);

[DllImport("user32.dll")]
private static extern bool GetCursorPos(out POINT lpPoint);

Note that mouse movement and scroll do NOT go through SendInput here. Those route through the InputManager injector thread (AccumulateMouseMoveInput / AccumulateMouseScrollInput / AccumulateMouseScrollHInput). SendInput in this class handles keyboard keys and mouse buttons only. SetCursorPos / GetCursorPos serve the absolute-pointer path.

Struct alignment (x64): INPUT uses LayoutKind.Sequential with an inner Explicit union at FieldOffset(0). On x64, ULONG_PTR fields need 8-byte alignment, so the union starts at offset 8. A flat Explicit layout with hardcoded offsets would break across architectures.

Key scan codes: SendKeyboard sets both wVk and wScan (via MapVirtualKeyW). Some games using DirectInput raw input require the scan code. KeyEvent builds them through InputHookManager.OutputKey, so Numpad Enter's index 0x88 goes out as VK_RETURN with Enter's scan code and the extended flag. Every event carries InputHookManager.OutputTag, which the hooks and the Raw Input reader pass by. The browser, volume, media and launch keys (VK 0xA6 to 0xB7) go out with the extended flag as well, since their scan codes carry the E0 prefix: without it a game that reads scan codes sees Play/Pause (E0 22) as G (22) (InputHookManager.IsExtendedKey).

Individual calls: Each SendInput submits exactly 1 event. Batching key down + up would give identical timestamps, breaking some applications.

Virtual keyboards and mice

HIDMaestro 1.12.0 (HIDMaestro#67) adds 51 keyboard and 52 mouse profiles. Each half of a Keyboard + Mouse slot can send through one in place of SendInput, and the programs that read devices see the model as hardware. Windows input stays the default for both halves.

Picking a device

KbmSlotConfig.KeyboardDevice and MouseDevice hold a HIDMaestro profile id, or KbmSlotConfig.WindowsInput, the empty string, for Windows input. They persist as the KeyboardDevice and MouseDevice attributes of KbmSlotConfigData, written only when set, so a file written before the pickers existed reads as Windows input. A load, a copy and paste, a profile apply and the reset buttons set both through SetDevices, which changes the two fields before either dropdown hears of it.

KbmDeviceCatalog builds the two dropdowns from HMaestroProfileCatalog.KeyboardProfiles and MouseProfiles, the profiles whose HMProfile.Type is keyboard or mouse, which no gamepad picker lists. Windows Input leads each list. A mouse profile with a keyboard collection heads the keyboard list as Same Device as the Mouse, and a keyboard with a mouse collection heads the mouse list as Same Device as the Keyboard. Picking it puts both halves on one profile. When the other half's device changes, a half that rode the shared device follows it when the new device has that half, and goes back to Windows input when it has not.

What a model can send

KbmDeviceCaps.For(profile) reads the profile's report descriptor once: its keyboard, consumer control and mouse collections, the keys the keyboard report reaches as bits or through its key array (KeyArraySlots, 0 for N-key rollover), the LED output report, the mouse buttons (MouseButtonCount, of the five Windows has), the wheel and the AC Pan tilt. It reads the descriptor the way HIDMaestro's own packer does, and KbmHidDeviceTests holds the two to the same answers for all 103 profiles. The device bar's tags come from it, and KbmSlotConfig.DeviceCanSend hides each mapping row the model cannot send and keeps its binding.

Lifecycle

DesiredKbmBuild reads the two devices the slot asks for and leaves out a half the surface mode turns off. A create captures them as a KbmBuild when it is kicked, as it captures an ExtendedBuild, and CreateKeyboardMouseController sets up the HIDMaestro context on the create worker, installing the driver on first use, then resolves each profile and builds the controller. A profile no catalog has fails the create. A failed create latches with the devices it was started for (_createFailedKbm), and picking another device or Windows input clears the latch. A running controller on other devices than the slot now asks for is torn down and rebuilt (KbmDevicesChanged).

Each device is made under KeyboardMouseVirtualController.IdentityKeyFor, padforge:pad{N}:KeyboardMouse:keyboard or :mouse, so it comes back at the same device paths after a restart (HIDMaestro 1.8.0). Removing a device waits on Windows, so DestroyVirtualController hands a Keyboard + Mouse controller with devices to a worker, except at shutdown, where the context's own dispose follows.

Sending

HMController.SubmitKeyboard, SubmitConsumer and SubmitMouse wait up to 200 ms for HID class to take the report before, and space reports 1 ms apart, so the poll thread never calls them. KbmHidKeyboard and KbmHidMouse each own a sender thread.

The keyboard sender takes the slot's four key words after SOCD cleaning and queues one frame for each state the keys pass through, so a tap shorter than a report interval still presses and releases. Past 128 waiting frames the queue collapses to the newest state: Windows has stopped reading the device, and a backlog replayed later would type into whatever has the focus. Each key resolves once, when it goes down, and is released as that same usage, so a layout switch while it is held cannot strand it. A key the report cannot carry is not pressed. Past the key array's slots a new key waits until one frees, which is what the keyboard itself would report. Media, browser and launch keys go to the consumer report.

The mouse sender adds up motion, wheel and tilt between reports, so none is lost, and queues button changes in order. HMController.KeyboardLeds and KeyboardLedsChanged give the lock lights Windows sets. The sender attaches first and reads second, because Windows sends a new keyboard its LEDs while CreateController runs. The preview lights its lock lights from them (InputManager.KbmKeyboardLedsOf).

Key map

KbmHidKeyMap.Resolve turns a key index into a usage. A character key goes through the foreground window's input layout, the layout Windows reads a HID keyboard's scan codes through: its virtual-key code becomes the scan code that layout types it from (MapVirtualKeyExW), and the scan code becomes the usage HID class sends for it, from SDL's windows_scancode_table. A mapped A then types "a" on AZERTY, the key SendInput types. Keys no layout changes (function keys, navigation, modifiers, the number pad) use a fixed table, the pairing DS4Windows' FakerInputMapping makes. The media, browser and launch keys go to the Consumer page usages PadForge's ConsumerUsageTable reads back from real devices. KbmExtraKeys lists the targets added with the devices (F13 to F24, the ISO key, the four Japanese keys, and the media, browser and launch keys), and the engine's key list, the mapping grid and the SOCD key list read that one table.

Reading back

A virtual keyboard or mouse is a device to Windows, and PadForge reads devices. Raw Input leaves out HIDMaestro's devices (RawInputListener.IsOwnVirtualDevicePath, set to HidHide's HIDMaestro test), so no keyboard, mouse or consumer state, merged or not, reads the slot's own output, and a slot fed by All Keyboards cannot type into itself. The low-level hooks tell SendInput output apart by its tag, which a HID device cannot carry, so each sender records the keys and buttons it presses before the report goes out (OwnHidOutput), and the hooks let those through. A key down counts as PadForge's until Windows delivers its release, which covers the repeats Windows makes for a held HID key. A release Windows never delivers expires after two seconds.

See Also

  • Architecture Overview: Virtual controller types, slot system, per-type limits
  • Input Pipeline: Step 5 (UpdateVirtualDevices) creates / destroys VCs and submits state
  • Engine Library: IVirtualController interface, Gamepad, RawHidState, KbmRawState, MidiRawState, Vibration
  • VR Controllers: the user-facing side of the VR slot type
  • HIDMaestro Deep Dive: HM SDK surface, OpenXInput filter, Step 5 lifecycle invariants, FFB through HM PID descriptors
  • Driver Installation Internals: HIDMaestro registration and its removal from Settings, HidHide install / uninstall, and the Windows MIDI Services runtime's install and uninstall
  • Settings and Serialization: VirtualControllerType ([XmlEnum("Microsoft")] / [XmlEnum("Sony")] aliases) and per-slot HM profile persistence
  • Build and Publish: HIDMaestro and HidHide embedded resources

Last updated for PadForge 5.2.0.
